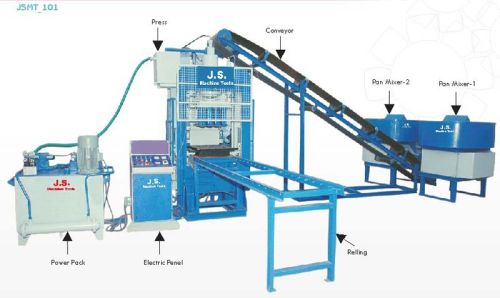

Fully Automatic Fly Ash Brick Making Machine, Power : 22.50 kw

Get in touch with us for excellent quality Fully Automatic Fly Ash Brick Making Machine. The Machines undergo numerous quality-tests before the final dispatch. Buyers can obtain these at nominal rates.

Specification & Features  :

• Maximum High Pressure : 100 to 125 Ton
• Total Required of Power : 28 HP
• Facility : Single Feeder Facility for Production of Fly – Ash Bricks.

• Accessories :

  • Two Roller Pan Mixer, PLC Control, Conveyer Belt, Power
  • Pack, Fully Sensor Type Machine, Trolley -2, Tool Box.

• Accessories :

  • Two Roller Pan Mixer, PLC Control, Conveyer Belt, Power
  • Pack, Fully Sensor Type Machine, Trolley -2, Tool Box.

• Electric Power : (28HP) – 10HP (Main Press), 7.5 + 7.5 = 15HP (2-Pan Mixer), 2 HP (Conveyor), 1HP (Vibrator)

• Approx Production :

  • 8 Bricks in a stock, Bricks Size : 230x100x75mm, 14,000 Bricks / 8 Hr. Approx.
  • 2 Blocks in stock, Blocks Size 300x200x150mm, 2,500 Blocks / 8 Hr. Approx

• Oil Tank (Power Pack) : 400 Ltrs. (68 No. Hydraulic Oil)
• System : PLC for Electro Mechanical, Oil Cooling, Auto Feed, Vibrating
• Shed : 50 x 35 ft., Height – 16 Ft.
