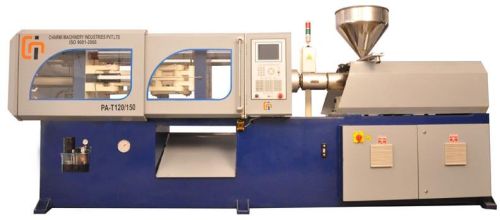

Fully Automatic Horizontal Plastic Injection Molding Machine

We offer a wide range of Fully Automatic Horizontal Plastic Injection Molding Machine. Fully Automatic Horizontal Plastic Injection Molding Machine comes with a fixed van pump, variable displacement pump, servo system, full PLC controller, hydro motor, and an ejector. Additionally, Fully Automatic Horizontal Plastic Injection Molding Machine is equipped with auto load hopper and a dryer.

Standard Features :

• PLC system ( colour display )
• AC three phase induction motor Servo Motor
• AC drive Servo Drive
• Hydraulic Fixed Van pump Variable Displacement Pump Servo Gear Pump
• High chrome platted step less tie bar
• Larger opening stroke mould capacity and tie bar distance to accommodate large moulds
• Graded casting  toggle, brackets and links with harden pin and bush
• Multi stage injection with speed & pressure
• Multi stage mould opening and closing speed & pressure
• Gas nitride steels screw barrel and cavity
• Part dropping sensor for single part
• Hydraulic & pneumatic core pulling device
• S.S. hopper with magnet grill
• Slide mechanism for hopper
• High efficiency and low power rate ceramic heater
• Centralize lubrication systems
• PID temperature controller for heaters
• Insulated heaters
• Screw back pressure control valve
• Cold start protection
• Air valve
• Water manifold 4 inout
• Hydraulic ejector
• Hydro motor for opening mold thread
• MCB control each heating zone
• Heater disconnection alarm
• Electrical and hydraulic (dump valve) interlock safety gate
• Ampere meter for heater
• Energy meter
• Oil temperature indicator
• Oil cooler ( water cooling type )

Injection Unit :

• Multi stage injection with variable speed & pressure
• Liner transducer to control programmable injection position
• Programmable holding pressure profile
• Programmable multi stage refilling
• Single injection cylinder  unit
• Automatic purging
• Gas nitrated hardened screw and barrel
• Heater disconnection alarm
• Cold start screw prevention
• Pre-suck back function
• PID temperature control
• Sliding mechanism for hopper
• Screw back pressure control valve

Clamping Unit :

• Case hardened pin & bush
• High tensile & hard chrome plated tie rods of larger diameters.
• Fully automatic centralization lubrication unit
• Multi  stage mould opening and closing with variable speed & pressure
• Liner transducer to control programmable clamping system
• Five point toggle locking system
• Graded casting, Platen &  toggle
• Motorized mould height adjustment for quick mould change
• Linear transducer for control programmable ejector position with variable speed & pressure
• Hydraulic ejector with multiple ejecting, oscillatory ejecting & holding
