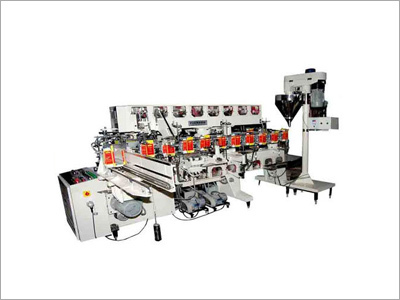

Fully Automatic Liner Carton Ffs Machine

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We offer fully automatic liner carton ffs machine. Automatic liner carton fill & seal machine model no. Aip 14 station our aip 14 automatic liner carton fill & seal machine is suitable to pack all type of powder (i.e. Spices, milk powder, atta, maida), granules, liquid, oil, semi liquid & other non-food products. Model no. Aip 22 station our aip 22 automatic liner carton fill & seal machine are suitable to pack all types of powder (i.e. Spice, milk powder, masala, tea etc),granules,liquid & paste.

View More Details

Send Enquiry

Technical Specifications

Production Applications	Powder, Granules, Liquid, Oil, Semi Liquid
Filling Range	200gm- 1000gm / 200ml-1Ltr.
Output	10 - 45 Carton per minute (Depending on product characteristics, Carton Size, Machine Model)
Manpower	One operator for running the machine, loading of cartons in the magazine & for filling glue units etc.
Carton Out feed	Height to carton base: 1050mm approx.
Dosing System	Auger feeder, Cup Filler, Weigh Filler, Piston Filler
Size Change	All carton dimensions can be changed within given range
Electric Supply	Standard 440/220 volt, 3 phase, 50Hz.
Power Required	6-7 KW, 3 phase, 440V (depending on equipment)
Floor Space	7 x 4.5 meter (with working space)
Machine Station	14 or 22 Station
Filling	Filling can be done only at 1, 2 or more stations.
Liner Material	Liner material is specifically selected from a wide range of laminates depending on the product protection required.
Optional Attachment	Emboss Coding, Ink Jet Coding, Gas Flushing
