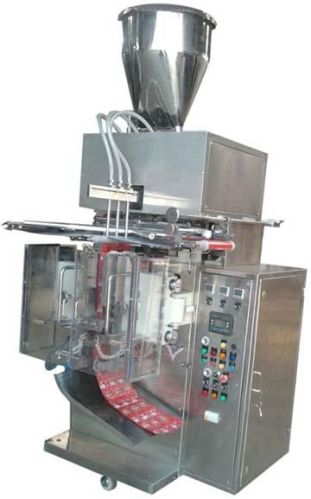

Fully Automatic Multi Track Liquid Pouch Packaging Machine

Fully Automatic Multi Track Liquid Pouch Packaging Machine

Listing ID #1666885

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

We are one of the most celebrated Manufacturers, Exporters and Suppliers of the experts approved Fully Automatic Multi Track Liquid Pouch Packaging Machine. The offered machines are sternly....

View More Details

Send Enquiry

Product Details

We are one of the most celebrated Manufacturers, Exporters and Suppliers of the experts approved Fully Automatic Multi Track Liquid Pouch Packaging Machine. The offered machines are sternly manufactured, designed in the modern manufacturing unit and that too under the vigil supervision of experts, other professionals. We are staffed by diligent team members and they make sure that the machines are as per the globally accepted standards.

Details :

Multi Track Shampoo Pouch Packaging Machine
fully automatic Liquor sachet filling & Sealing Machine
Multi track tomato ketchup, Sauce , Paste Pouch packing machine
Six Track Creram , Liquid Pouch Packing Machine
multi track oil Sachet form fill & Seal Machine
Volumetric Gravity filler liquid packing machine
Volumetric injection piston filler liquid packing machine

About Machine :

Multi track, fully automatic, totally controlled by PLC Siemens (programmable logic controller), compact robust machine, simple operation, low maintenance, high productivity.
All contact parts made of stainless steel 316
This heavy duty machine is Capable for Running 24 Hours
Finish product conveyor for easy secondary packing
Film roll loading and unwinding arrangement with guided trolley.
This heavy duty machine is Capable for Running 24 Hours

Technical Specifications

Speed of the machine		360 pouch/minute
Pouches weight		1ml to 10 ml & 20 ml to 50 ml.
Product type		Liquid , oil, paste, cream , gel, shampoo, ketchup, chutney, liquor, tabacoo Etc.
Pouch width		65-100 mm
Pouch length		40mm to 165mm adjustable
Sealing type		Four side sealing
Machine sealing motion		Intermediate type
Horizontal & vertical seal width		6 mm all side
Number of tracks to meet the requested speed		60stoke /min.
Hopper capacity in kg		50 kg
Filling system type		volumtric injection piston type
Filling accuracy		± 2%
Individual track weight adjustment		All piston individuals adjustment system
Level sensor type & brand		Banner make /data logic etc.
Maximum roll width		800mm , 1200mm.
Maximum roll diameter		20 inch type approx 500mm dai
Roll lock type		Thread nut for lock system
Tear notch for easy open		Straight cut
Pouch production counter		Digital display or touch screen
Film draw mechanism		Motorize sensor control system
Film centering mechanism		Manual Sifting adjustable
Film /paper specification		Any heat sealable flexible laminate two (polyester 10 to12micron with LD , BOPP ) , three layer ( Polyester 10 to 12 micron +aluminum foil+ LD , BOPP ) 30micron to 150micron thickness
No film no filling safety function		Film sensor indicate & control filling
Sachet width adjusting possibility		± 10 mm adjustment
Sachets take away belt		Finish pouch auto collection conveyor W-380x 2000mm long
Sealer materials		SS-410 All sealer
Main Body materials big parts		Mild steel fabricated
Contact part materials		SS-304 all machinery conveyor & connected parts SS-316
PLC, HMI, motors, drive, photocells, electrical parts, heating elements, power supply and pneumatic parts manufacturing brand		Hardware PLC, DRIVE ,HMI , H/W reputated international make photocell data logic Festo Make valve & Jenetic make valve cylinder & fitting
Printing with Inject printer not embossing		Emboss coding batch on sealing OR TTO printer attachment ( both optional )
Electrical requirements	3Ph with neutral 440 ± 10, 5 KW
Electrical consumption as KW		6 KW
Compressed air requirement & consumption		4CFM
Machine dimensions and weight		2.5x2x2 meter +2000 kg

Product Images

Company Details

We introduce ourselves as a manufacturer and exporter of wide range of packing machine for liquid, semi liquid, powder, granule, solid, etc. Approx 800 nos. Installation are running all over india and abroad as kenya , uganda ,tanzania , zambia , nigeria ,ghana , ivory coast , congo, malawi , ethiopia , dubai , etc. We have 65 trained technician among our group companies to look after all the domestic and international supplied machine by us. We are committed to give the good service.
We have introduce of our some high quality of machine as per their quality and output as per certified our best customers
