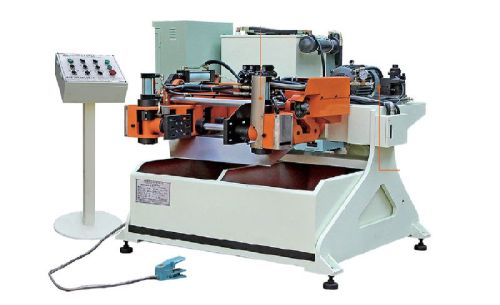

Gravity Die Casting Machine

Gravity Die Casting Machine

Listing ID #4380420

Get Latest Price
  • Angle range of front casting0-90o
  • Clamping Working Pressure8900N
  • Max rotation diameter of the moldØ 450mm
  • Max interval between fixed boards of the mold430mm
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

D S TECH verified-icon
Saket, Delhi
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Working oil pressure 50-70bar
  • Mold Opening Working Pressure 11500N
  • Volume of hydraulic oil tank 110L
  • Hydraulic Power 5.5 (7.5HP) Kw
  • Angle range of front casting 0-90o
  • Max rotation diameter of the mold Ø 450mm
  • Total weight of the machine 2000kg
  • Angle range of side casting 30o - 80o
  • Max mold weight 125Kg
  • Equipment Power 7.5 KW
  • Working Voltage Ac 380V
  • Clamping Stroke 270mm
  • Hydraulic oil brand HM46# or HM68# anti-wear, anti-foam and anti-rust petroleum base hydraulic oil
  • Clamping Working Pressure 8900N
  • Temperature range for the use of hydraulic oil 5oC - 65oC
  • Max interval between fixed boards of the mold 430mm
  • Outline dimension of the machine 1940 x 1750 x 1650 mm
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

A company have more than 21 years of experience in Zn and Al Die Casting machines, Mold Designing, Applications on ferrous and non ferrous metal working machine tools. D S Tech a team of experience people provides prompt after sales and service solutions to Die casting and metal cutting machines. Our expertise in Metal Finish and Automobile die casting products in Zn and Al.
