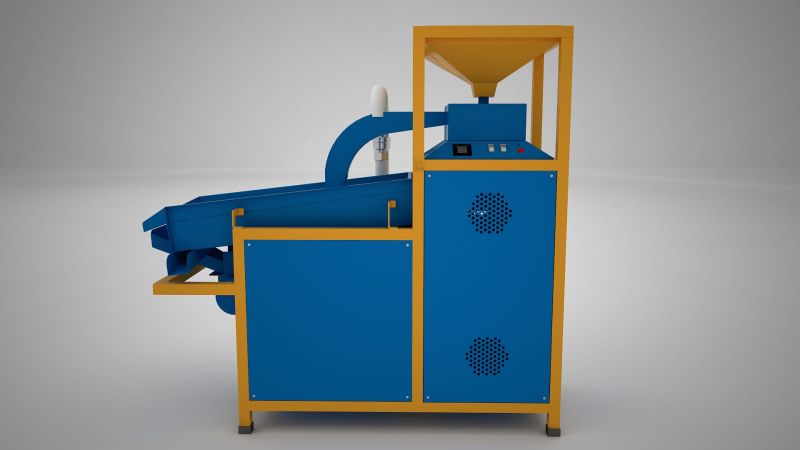

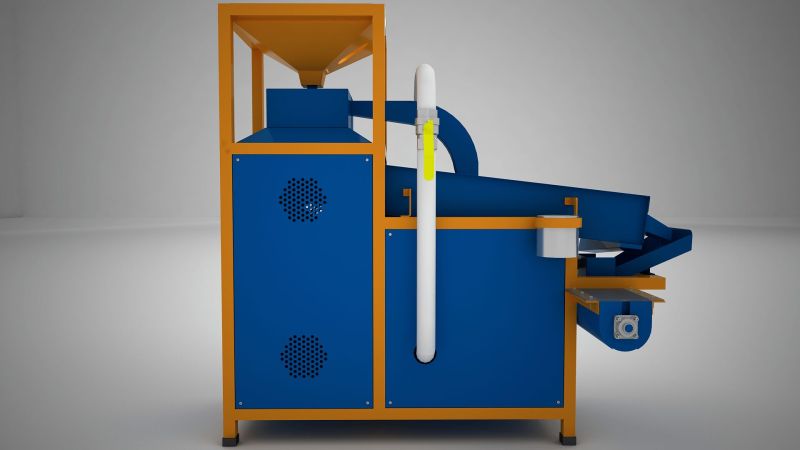

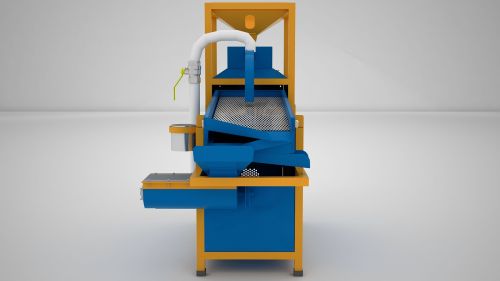

Heavy Duty Pulse Processing Machine - Aatomize 5HP

The AATOMIZE AZDM504 is a 5HP commercial-grade dal mill machine designed for high-capacity pulse dehusking and splitting operations. Equipped with a double chamber design and a high-speed beater system, this model is engineered for continuous, low-breakage output and is suitable for toor, moong, chana, urad, and masoor dal processing.

Its robust powder-coated mild steel body, long-lasting performance, and ability to deliver clean, polished split dal make it a preferred choice for agro-processing plants, FPOs, SHGs, grain traders, and rural processing units. The AZDM504 ensures minimal loss, low energy consumption, and efficient husk separation—making it ideal for packaging or wholesale distribution.

• Model: AZDM504

• Motor Power: 5HP (Three Phase – 415V)

• Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity: 50–70 kg/hr (depending on pulse type)

• Supported Pulses: Toor, Moong, Chana, Masoor, Urad

• Chamber Type: Double Chamber (for Dehusking & Splitting)

• Body Material: Mild Steel (Powder-Coated)

• Power Consumption: ~4.5–5.5 kWh

• Output: Clean Split Dal + Husk

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)
