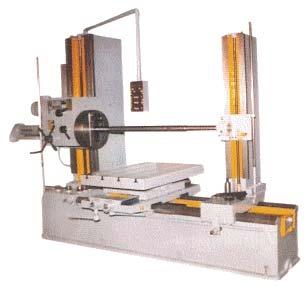

Horizontal Boring Machine

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

We manufacture Horizontal Boring Machines as per international standards, which are used in soughing and finishing operations within the range of Boring, Drilling, Facing & Milling. The High....

View More Details

Send Enquiry

Product Details

We manufacture Horizontal Boring Machines as per international standards, which are used in soughing and finishing operations within the range of Boring, Drilling, Facing & Milling. The High Precision Horizontal Boring Machine, supplied by us, is recommended for almost all classes of work. The machine is easy to maintain, thus easy to produce a quality machine tools matched to the needs of the factory for which it is intended. The various mechanisms are enclosed and all the external surfaces are smooth and easily cleaned. The massive construction is a guarantee to withstand fully all the working stresses. The design of the Boring Machine guarantees stiffness, accuracy and large output. The above mentioned unbeatable features of our product make us the key Horizontal Boring Machine Supplier from Punjab.
Horizontal Boring Machine is Available from 65mm to 125mm Capacity.

Technical Specifications

	mm	mm	mm
Aloy steel work spindle hardened & Ground-diameter	100	110	120
Morse Taper Number	6	6	6
Max. Longitudinal movement of the working Spindle	550	550	600
No. of spindle speeds	9	9	9
Range of spindle Speeds	22 to 240	15 to 200	12 to 200
Longitudinal work spindle feeds nos.	9	9	9
Max. height of the spindle axis from table surface	1100	1150	1200
Min. height of the spindle axis from table surface	30	30	30
Dimensions of Rotary Table	1125 to 1400	1150 to 1400	1200 to 1450
Longitudinal table traverse	1650	1950	2050
Long. table traverse feeds (including one Rapid)	8	8	8
Transversal table travel feeds (including one Rapid)	8	8	8
Vertical Headstock travel feeds (including one Rapid)	8	8	8
Rotary table automatic feeds (including one Rapid)	8	8	8
Max. cross movement of the table	1200	1300	1500
Max. distance between stay bearing and the facing head	2650	2750	2800
Facing head diameter	610	610	650
Weight approximate in kgs.	11000	14500	18000
