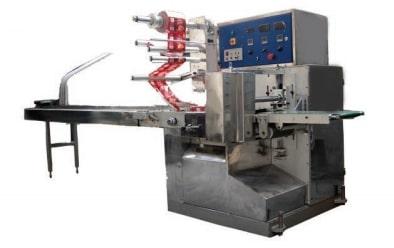

1250 KG Horizontal Flow Wrap Machine

₹ 2.25 Lakh - ₹ 5.55 Lakh / Piece

Product ApplicationBiscuits, Rusk, Choclate, Sohan Halwa, Ice Cream & Chocolate bars, Hinges, Bearings etc
Availability1250 KG
Pulling SystemServo / Vector drive
WebsizeWidth 40-125 mm Height 40-100 mm Length 70-225 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

4.5/5

Ask for more detail from the seller

Report incorrect details

Product ApplicationBiscuits, Rusk, Choclate, Sohan Halwa, Ice Cream & Chocolate bars, Hinges, Bearings etc
Availability1250 KG
Sealing SystemContinuous Heat Seal
Power Consumption3.0kw 415 v50 Hz
Model NumberUT - 67
WebsizeWidth 40-125 mm Height 40-100 mm Length 70-225 mm
Packaging Speed8 0-200 per minute ( depending upon the pack size)
Pulling SystemServo / Vector drive
Contact PartsSS304
Optional AttachmentInk jet / TTO printer

Features :

Sachet forming & sealing device with any one selected width of former.
Electronic control panel with appropriate interlocking system,
PID for vertical and horizontal sealing station,
Sachet counter,Rotary switch with indication lamps, applicable relays , contactors, VFD drive, flexible wire completely housed inside the machine.
Scanner for correction of eye mark in the printed heat sealable laminated film
All product contact parts in SS-304.
The product is fed in the conveyor by the operator the pusher automatically
collects the product and moves it horizontally to the tube forming device where the cross sealing and the cutting knife separates the packed pouches.
