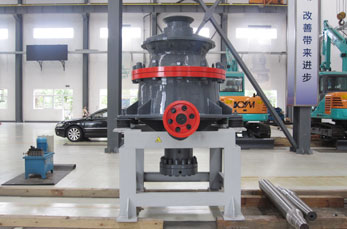

HST Cone Crusher

Sold By : Vamech Seals

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

HST series single cylinder cone crusher with hydraulic-driven system is a kind of new type high efficient crushing equipment which is developed by our engineers through over 20 year's effort of design, manufacture, sale, and after-sale service in crushing industries. It is widely used in primary crushing, secondary crushing, tertiary crushing and fine crushing.

Features

High production capacity and excellent grain type of output product
Special bearing design for much more carrying capacity and longer life
Enhanced body design makes it quite reliability.
Easy to adjust discharging opening and to maintain by using optimized hydraulic lubrication station

Application

HST series cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.

Model	Movable Cone Diameter(mm)	Chamber Style	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	Power (kw)	Machine Size (mm)
HST100	790	EC	135	10-32	46-128	90	1550×1575×1965
		C	90	10-25	43-118
		M	65	8-16	36-76
		MF	50	6-13	29-68
		F	35	4-10	27-57
		EF	28	6	30-40
HST160	956	EC	180	13-38	69-215	160	1875×1920×2400
		C	145	13-32	65-197
		MC	115	10-25	60-180
		M	90	10-22	60-160
		MF	75	8-19	61-125
		F	50	6-19	45-105
		EF	35	6	70-90
HST250	1150	EC	215	16-44	110-380	250	2100×2320×2780
		C	175	13-38	100-385
		MC	140	13-32	95-325
		M	110	13-25	115-335
		MF	85	10-22	90-280
		F	70	8-19	90-235
		EF	38	8	100-125
HST315	1408	EC	275	16-44	177-660	315	2380×2735×3265
		CX	245	16-38	170-650
		C	215	16-38	170-640
		MC	175	16-32	160-552
		M	135	16-32	195-500
		MF	115	13-32	190-450
		F	85	13-25	195-400
		EF	65	13-22	210-300
