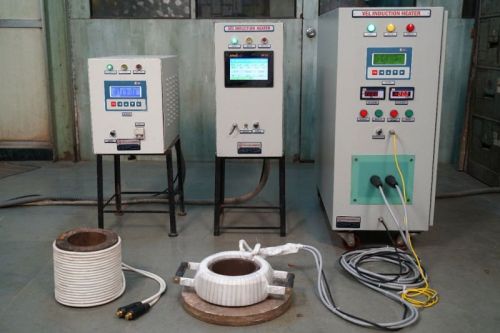

Induction Shrink Fitting System

Get Latest Price

Automatic GradeSemi-Automatic
Power SourceInduction
Machine MaterialMild Steel
Output Power5 kW,20 kW,40 kW& 80 kW
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

VEL INNOVATIVE TECHNOLOGIES PRIVATE LIMITED

Mumbai, Maharashtra

5.0/5

(1)

View Number

Member Since 5 Years
Nature of Business Manufacturer
GST No. 27AAFCV2943K1ZZ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Automatic GradeSemi-Automatic
Power SourceInduction
Output Frequency2-20 kHz
Machine MaterialMild Steel
Power Factor> 0.90
Power ControlContinuously Variable from 0-100%. Soft Start, Auto Ramping
Output Power5 kW,20 kW,40 kW& 80 kW
Time Control0-9.9 mins
Maximum Temperature250°C (max)

VEL Extract Ease series, a cutting-edge solution at the forefront of technology, intelligent microcontroller based electronic control, solid state IGBT based high frequency Induction Heater, specifically designed and manufactured for dismounting and mounting of shrink fit components like bearings, inner races, coupling, pinions, gears, sleeves, throwers, retaining collar etc.

Salient Features

Highly efficient and fast heating compared to conventional low frequency systems.
Air cooled system, so no need to handle water or any coolant
Flexible air cooled coil to suit different types of job making it versatile and user friendly
Compatible with rigid Induction Coils (weight less than 5 kgs) for continuous production operations.
No magnetization at high frequency hence no need for demagnetization cycle.
Built-in safeguards, including Over Voltage, Over Current, Coil Winding Temperature, and Device Temperature trips, etc

Additional Information

TYPE	VEL/IBE5	VEL/IBE20A	VEL/IBE40A	VEL/IBE80A
Incoming Voltage	230V, 50Hz	3 phase, 440V+10%, 50Hz, 4-wire system.
Output Power	5 kW	20 Kw	40 Kw	80 kW
HMI/MMI Display	Man Machine Interface is 4-line alpha numeric LCD display. The LCD Displays all set, operational and trip parameters etc. Five functional keys to set & save the operational parameter
Power control	Continuously variable from 0-100%. Soft start, Auto ramping
Modes of Operation	 Timer Mode  Temperature Mode  Timer/Temperature Mode  Temperature Hold Mode
Safety Trips & Alarm	 Over Voltage trip  Over current trip  Coil winding temperature trip  Device temperature trip
Induction Coil(s)	Flexible high temperature air cooled cable of suitable length and/or different types of rigid Induction Coils to suit different sizes of cylindrical components
Power Factor	> 0.90
Output Frequency	2-20 kHz
Time control	0-9.9 mins
Maximum Temperature	250°C (max)
Memory Backup	To set &save all the set values of operational parameters such as power, time & temperature for different jobs (99 jobs) in rewritable memory (EEPROM) of the microcontroller
