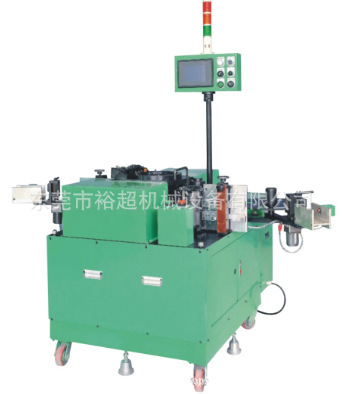

Insulating Paper Insert Machine 2

1. Automatic process without loading and unloading.
2. 3 shafts servo motor driven
3. Many models can be work at same machine, just change the fixtures. Save the cost.
4. Flexible to change folding edge width according to customer's demands.
5. Available for different sizes of slot or special made stators.
Max.stator outside dia.:220mm
min.stator outside dia.:80mm
stator thickness:10-150mm(price taking by products)
number of stator slot:8-36 slots
insulation paper in serting speed:0.04-0.05secslot
power:1hp, servo motor 750wx2sets; servo motor 1000wx1 set
power supply:220380v3phase
machine volume:1200x1200x1000mm(lxwxh)
machine weight:600kgs
