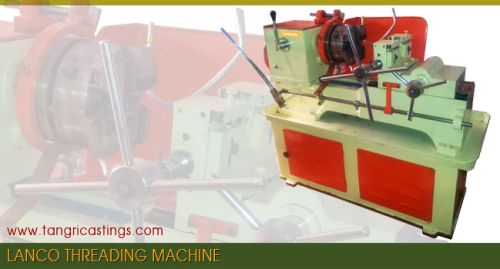

Lanco Threading Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Size in Inches: 1/4" to 1", 3/8" to 1.1/2", 1/2" to 2.1/2" Size in MM: 6mm to 30mm , 9mm to 45mm, 12mm to 65mm Introduction:Lanco Threading Machine is use to cut the external....

View More Details

Send Enquiry

Company Information

Tangri Castings India(Regd.)

Gill Road, Ludhiana, Punjab

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Size in Inches: 1/4" to 1", 3/8" to 1.1/2", 1/2" to 2.1/2" Size in MM: 6mm to 30mm , 9mm to 45mm, 12mm to 65mm

Introduction:
Lanco Threading Machine is use to cut the external threads with the help of Tangential chaser. Chaser is use as a cutter in Machine. Bolt and Pipe remain still, Die-head rotates.
Threads Cut Support:
( parallel and taper)
BSPT
BSW
BSP
NPT
UNF
METRIC
UNC
ACME
BSF Threads.

Features:
The Spindle Bore 40mm Fitted with Taper Bearing 32212 & 32211
The Machine Has Two Speeds 60 & 90 RPM
All Gears are Tempered (Oil Seals 42-12-65)
Motor Pulley 12" Diameter, V-belt Drive Vice Fitted with Jaw
Capacity of Bolt Threading Die Heads.
1/4" to 1"
3/8" to 1.1/2"
1/2" to 2.1/2"

Machine Sizes	1/4" to 1"	3/8" to 1.1/2"	1/2" to 2.1/2"
Length of Bed	44"	52"	72"
Width of Bed	11"	12.5"	14.5"
Height of Bed	11"	12.5"	14.5"
Length of Pety	44"	52"	22x22. 20x16"
Width of Pety	18"	19"	21"
Height of Pety	20"	20"	20"
Length of Slide	17"	18"	14.5"
Width of Slide	11"	12"	4"
Height of Slide	3"	3"	17"
Length of Head	14.5"	15.5"	23"
Width of Head	11"	12"	14.5"
Height of Head	11.5"	12"	14.5"
