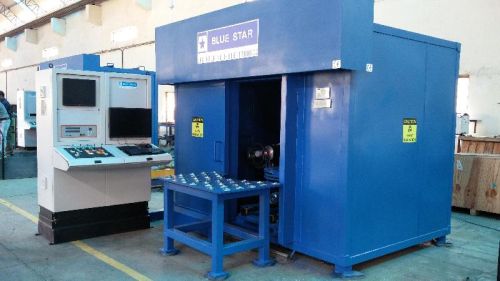

Lead Cabinet X-ray System

Listing ID #3033375

Fully lead enclosed cabinet type Xray inspection system with multi axis manipulator to handle various jobs upto 60Kgs weight. The complete system is especially designed for aluminum die cast components manufacturers. The system gives real time feed back to the operator to improve the process and also confirms quality of the product.

Details :

• Cabinet On Legs :

  • H.V generator and cool era replaced beneath the cabinet.
  • Dismountable (reduced space for transportation).
  • Control console with integrated control rack
  • Minimal floor space required
  • Easy installation

• Compact,ergonomic design :

  • Cabinet weight only 4.0t or 4.5t (XL)
  • Cabinet size only 2500x2200x2720mm (WxDxH)
  • Control console, cabinet, sample, lead glass window inline.

• Ergonomic control console :

  • Best fit 17” monitor -(3times eye-screen distance/screen diagonal)
  • Use of only 2 joy sticks -Ability to concentrate on the X-ray image only

• External manipulator travel :

  • Fast manipulation
  • Ergonomical height for loading
  • Easy to use in practice

• Practical proven manipulation speed :

  • Upto15m/min(49'/min), earlier systems 2-3m/min (8'/min)
  • Adaptable for each inspection position
  • Increased through put by using simple sample fixtures
  • Programmable inspection sequence

• Experience of more than 100 installed systems
• Diagram of allowed/safe travel distances
• Collision protection by software & hardware greater travel distances.
• Quick remote PCNC service
• Plug-in connection for safe and quick installation
• Compact footprint with back-to-back setup and easy maintenance access
• Batch wise testing for smaller samples.
• Faster inspection by easy loading and un-loading.
• Can be customized to CONVEYER based X-ray inspection to meet production criteria.
• No special/ strong fixture for sample needed.
• No adaptation of magnification necessary.
• High sample weight
• 24/7 Support on X-ray machine
• 100% quality control is simultaneously making sure automobile manufacturers' strict specifications are being complied with, and without forfeiting quality
