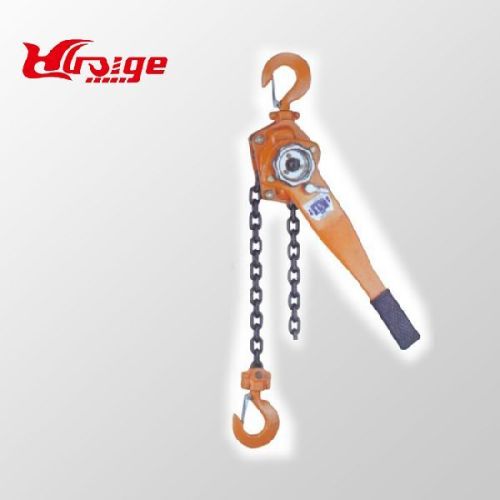

Lever Chain Block 1T

lever chain block 3 ton 5 ton 1.5 ton  Lever chain block 3 ton 5 ton 1.5 ton widely used for stringing, sag adjustment,staying wire in power line construction, and for equipment installation in fields such as electrical power,ship building,transportation,building construction, mining,communication, as well as lifting, pulling. It enjoys exceptional advantages particularly for pulling at any angles in every limited narrow workplace, field operation, aloft work.The manual lever block chain are made of superior steel, which has the following characteristics in design.a. Safe, reliable and durable use.b. Excellent performance and minimum maintenance.c. Small volume, light weight and portable size.d. Hand pull and high efficiency.e. Advanced structured attractive appearance.Application: This heavy duty chain hoist is perfect for lifting engine, machinery, tree limbs, and radio towers. Model Capacity(T) Standard lift(M) Running test load(T) No. of falls of load chain Load chain Diameter(MM) Dimension(MM) Net weight(KG) A B C VA 0.75T 0.75 1.5 1.125 1 6 148 87.5 135 7 VA  1T 1 1.5 1.5 1 6 148 87.5 135 7.5 VA 1.5T 1.5 1.5 2.25 1 8 176 102 157 11 VA 2T 2 1.5 3 1 8 176 102 157 12 VA 3T 3 1.5 4.5 1 10 195 109 210 19 VA 6T 6 1.5 9.5 2 10 195 109 253 32 VA 9T 9 1.5 13.5 3 10 198 120 319 47 lever chain block 3 ton 5 ton 1.5 ton  Feature5ft/10ft/20ft(1.5m/3m/6m) liftBuild-in mechanical load brakeTwo swivel hook with safety latches7mm diameter chain thickness1-1/2
