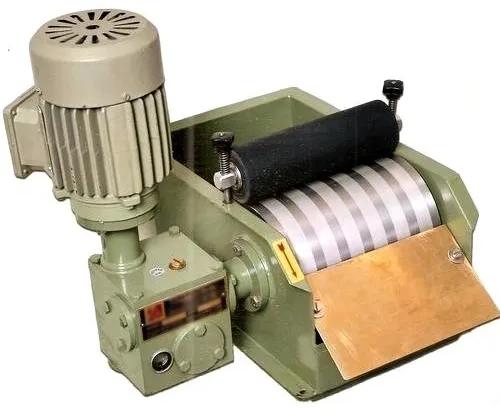

A magnetic coolant separator (magnetic dust separator) is used to separate iron dust particles from the coolant fluid. When coolant with iron impurities comes in contact with a magnetic drum, the iron particles get extracted. The magnetic drum is kept clean all the time by a scraper blade along the circumference and a rubber roller squeezes the sludge gathered to ensure that no coolant is wasted.

Salient Features:

·       A sturdy welded M.S Frame / S.S Frame
·       The magnets enclosed in the stainless-steel drum have powerful an-isotropic ferrite magnets with uniform magnetic fields all along the circumference
·       Have a neoprene rubber roller with cover bearings
·       A stainless-steel blade with adjustments for efficient scrapping of the sludge
·       An electric motor working 440 V with reduction gear revolving the drum at about 6.5 RPM
·       Standard unit with capacity of 50, 100, 150, and 200 Liters/min.
·       Customized design/capacity is also available

A magnetic coolant separator (magnetic dust separator) is used to separate iron dust particles from the coolant fluid. When coolant with iron impurities comes in contact with a magnetic drum, the iron particles get extracted. The magnetic drum is kept clean all the time by a scraper blade along the circumference and a rubber roller squeezes the sludge gathered to ensure that no coolant is wasted.

Salient Features:

·       A sturdy welded M.S Frame / S.S Frame
·       The magnets enclosed in the stainless-steel drum have powerful an-isotropic ferrite magnets with uniform magnetic fields all along the circumference
·       Have a neoprene rubber roller with cover bearings
·       A stainless-steel blade with adjustments for efficient scrapping of the sludge
·       An electric motor working 440 V with reduction gear revolving the drum at about 6.5 RPM
·       Standard unit with capacity of 50, 100, 150, and 200 Liters/min.
·       Customized design/capacity is also available
