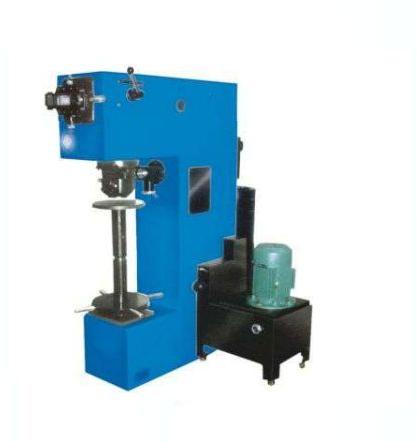

Aditya Instruments Mechanical Brinell Hardness Testing Machine

₹ 1.15 Lakh - ₹ 1.45 Lakh / piece

Brand NameAditya Instruments
Display TypeAnalog
Drive Motor0.33-415v/p HP
Loads500 to 3000 Stages of 250
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameAditya Instruments
Display TypeAnalog
Loads500 to 3000 Stages of 250
Drive Motor0.33-415v/p HP
Net Weight500 Kg
OriginIndia
Depth of Throat200mm
Size of Base370 x 670mm
Machine Height1185mm
Max. Depth of Elevating Screw Below Base180mm
Max. Test Height380mm

Basic machine design & operation similar to Al B-3000(H). In addition, an ‘optical device’ with 14 x Magnification provided in front to project dia of ball impression on glass screen with a micrometer measuring system with 0.01 mm accuracy. The indenter sweivels & projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression. This gives real Brinell number on production testing.
