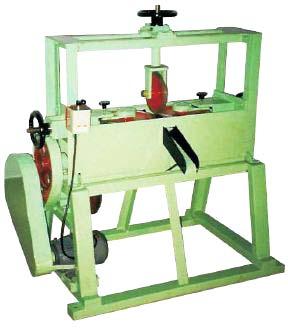

Mechanical Squaring Press

The Mechanical Squaring Press offered by us is demanded for varied applications that also include pressing braided rope in square as well as rectangle shape depending on the demand of the customer. The superb quality Mechanical Squaring Press has a high demand all across the globe and is supplied to different places without any delay. Features :

• Sturdy design
• Regulation of winding lead
• Four individual rollers for perfectly sharpened edges
• Square or rectangular shaped production
• Die plates in different sizes
• High mechanical strength
• M.S. Rollers -surface hardening
• Optional Availability :
  • S.S rollers
  • Linear position indicator used for measuring roller’s travel
  • Meter counter
  • Technical Specifications DescriptionMP-M25 MP-M50MP-M75MP-M100Length (L)900120013001400Depth (D)650700700800Height (H)1200140014001500Min. Processing Size (mm)03040506Min. Processing Size (mm)255075100No. Of Die Plate11151617Size of Die Plate03,04,05,06,08
    10,12,16,19,22,2504,05,06,08,10,12,16,19
    22,25,28,32,38,45,5005,06,08,10,12,16,19,22
    25,28,32,38,45,50,62.5,7506,08,10,12,16,19,22,25,28
    32,38,45,50,62,6,75,90,100Motor (Ph Kw V)3 0.75 4153 1.10 4153 1.50 4153 2.20 415OptionS.S. RollerOptionOptionOptionOptionMeter CounterOptionOptionOptionOptionLinear Position IndicatorOptionOptionOptionOptionInfinitely Variable Speed ControlOptionOptionOptionOption
