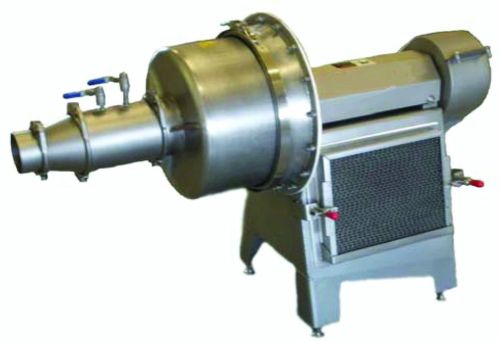

Our Mist Air Purifier is designed to filter fines from extruders, preconditioners and coaters. Using water injection nozzles, the fines are captured and transported to the waste drain. The capturing of these fines can help reduce contamination sites for bacterial growth and reduce downtime for routine equipment cleaning.
STANDARD CONSTRUCTION FEATURES
304 Stainless steel product contact surfaces
Interior product contact welds continuous and ground flush to 120 grit
Exterior welds continuous
3 HP, 304 stainless steel, washdown duty motor, Rated for 185 degrees F
Belt drive arrangement with 304 stainless steel guard
304 Stainless steel foot pedestal
500 CFM airflow
Water consumption – 2 G.P.M.
Integral 4 mesh filter media
34” Fines and condensate drain
Internal baffle and drain
Safety grid on back opening in rear plate
Splash baffle with drain pan for external filter
Water addition nozzle
18” Stainless steel
0.7 GPM at 20 PSI
Must be installed in convey line near pre-conditioner vent
Support legs, 304 stainless steel, for floor mounting of the unit complete with leveling feet, 12” max clearance
