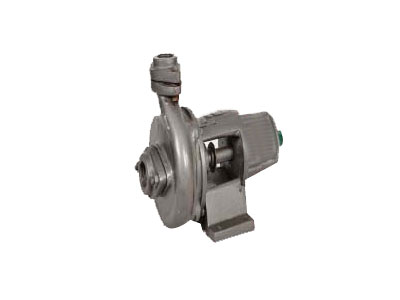

Deep Monoblock Centrifugal Pumps

Features:

• Can withstand wide voltage fluctuation - from 300-440 volts.
• Suction lift up to 7.5 meters.
• Top flat efficiency curve : minimum variation in efficiency in entire operating range
• Efficiency at par with internationally available pumps - higher up to 10 points than minimum required by Indian standards specification
• Models are with IP - 44 protection. Models with IP - 55 protection are also available on request
• Inside and outside of pump covered by anticorrosive paint
• Continuous rated motor
• Designed for automatic air release during priming
• Replaceable wearing parts and hence longer life
• Dynamically balanced rotating parts ensure minimum vibrations
• Designed to prevent overloading and motor burning
• Class of insulation 'B' ( 'F' Class for 9.3 kw and 11.0 Kw ratings).

• Applications:

  • Industries for clear water handling .
  • Water supply for domestic use in apartments, Buildings and hotels.
  • MMP Series Three Phase Pumps : Single stage, High speed horizontal, Centrifugal , Monobloc with volute type delivery casing

  Range:

  • Head : 6-52 meters
  • Capacity : 19.0-2.0 liters per second
  • Power rating : 0.37 Kw to 5.5 Kw (0.5 HP to 7.5 HP )

  Material Of Construction Standard Supply:

  • Impeller: Cast iron
  • Delivery casing :Cast iron
  • Motor body : Cast iron
  • Shaft : EN -8
  • Shaft Sleeve :SS-410

  • Optional Supply:

    • Impeller: Bronze / Stainless Steel
    • Shaft : Stainless steel
    • Shaft Sleeve :Chrome Steel
