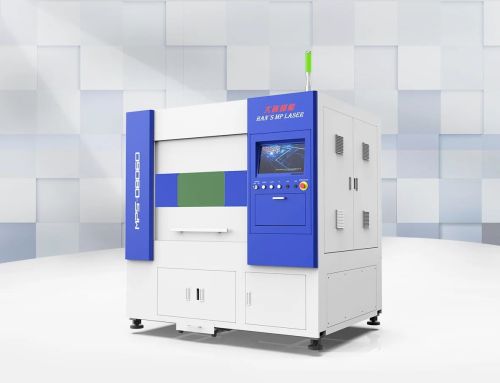

MP Series Small Format Precision Laser Cutting Machine

Sold By : Hans Laser technology

Product Specifications

TorqueHigh
ReducerHigh Precision Imported
Servo MotorHigh Torque
EfficiencyHigh
Supply TypeManufacturer

Product Overview

High processing accuracy: Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics;Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability;
Easy operation & intelligent: Adopt the professional digital control system, which is developed by Han’s MP, achieving the HANS digital control system with the features of good performance, high reliability and convenient operation.

Item	MPS-0606LM	MPS-0806D
Processing area	680mm×680mm	800mm×600mm
XY axis location accuracy	±0.002mm/m	±0.03mm/m
XY axis repeat location accuracy	±0.002mm	±0.02mm
Max running speed	48m/min	30m/min
Max load of worktable	5kg	25kg
Power supply	380V/50HZ	380V/50HZ
Machine tool weight	3.0 T	1.0T
Dimension(LWH)	1880×2000×1700mm	2000×1500×2000mm

Company Overview

Manufacturer Of HANS-G Frame Torque Motor, Sensor Welding System, Laser Welding Machine for Motor Stator Core, High Precision Laser Resistor Trimming System, Lpcvd Coating Machine, Low Pressure Diffusion System, Solar Cell Nondestructive Laser Cutting Machine, Automatic Laser Cutting Machine, Laser Groove Machine, Laser Scribing Machine for Thin-film Solar Cell, PV Glass Laser Drilling Machine, laser screen plate cutting machine, High Precision Five Axis Linkage Welding System, Fully Automatic Laser Solder Ball Spray Welding System, Integrated Handheld Welding Machine.
