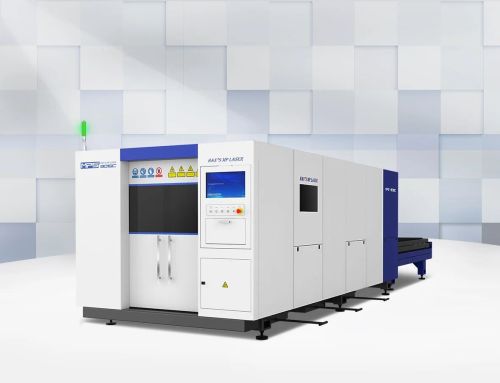

High Rigidity Welded Body MPS-C Fiber Laser Cutting Machine

Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability;
Easy operation & intelligent: Adopt the professional digital control system, which is developed by Han’s MP, achieving the HANS digital control system with the features of good performance, high reliability and convenient operation.
Low running cost: Low accessing gas consumption by precision control, to ensure the low running cost, three kinds of auxiliary gas can be choose freely by customer.

Item Parameters
Processing area 3000mm×1500mm
X/Y axis location accuracy ±0.05mm/m
X/Y axis repeat location accuracy ±0.03mm
Max running speed 120m/min
Max running acceleration 1.2G
Max load of worktable 700kg
Power supply 380V/50HZ
Machine tool weight About 5.5T
