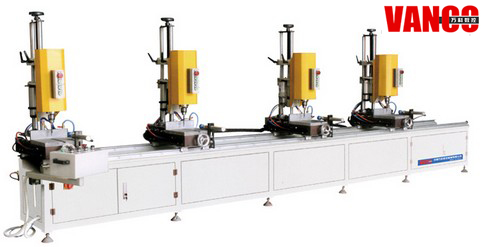

Multi-head Combination Drilling Machine

We are offering multi-head combination drilling machine for aluminum door and window lzz4-13lzz6-13
features:
1. Used for drilling holes on the aluminum and curtain wall profiles, especially used for long profile and large volume production.
2. Max. Processing section size is 250x250mm, and max. Processing length is 5000mm.
3. It can be installed multi-head drilling sets to meet multi-holes processing requirement.
4. Adopts air and hydro-pneumatic cylinder in feeding system ensures a smoothly feeding.
5. Schneider or omron control system (optional) makes linkage of any drilling tools.
Technical parameter:
power supply: 380v50hz
motor power: 4*0.75kw
motor revolving speed: 1400rmin
drilling hole diameter: 13mm (max)
max distance of two drilling hole: 5000mm
min distance of each set of drilling hole: 300mm
power driller number: four
max forward and backward moving distance of driller: 120mm
driller up and down moving distance: 150mm
working table dimension: 300mm*300mm (l*w)
driller feeding travel: 125mm
working pressure: 0.5~0.8mpa
max processing profile section dimension: 250mm*250mm
dimension: 5500mm*1900mm*1000mm (l*w*h)
