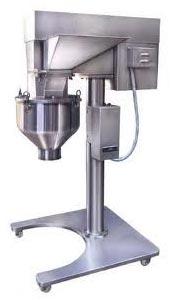

Multi Mill, Rotor Assembly Diameter : 250 mm. Approx.

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

The company has attained a top-niche in the market, as one of the reputed Manufacturers and Suppliers of Multi Mill. Multi Mill is used for handling jobs such as granulating, pulverizing, mixing, chopping, etc. We offer Multi Mill in various grades and specifications. Moreover, clients can avail Multi Mill, from us, at the market leading prices.

View More Details

Send Enquiry

Product Details

Technical Details

Model	APE-MM-STANDER
Rotor Speed	750 to 2500 RPM (Rotate per Minute)
Motor	TEFC, 3HP/1440 RPM/ 440V /50 cs/ 3ph
Rotor assembly Dia.	260 mm (approx.)
Beaters	12 nos. knife and impact edges 2 scraper blades
Screen Dimension	Dia. 265 mm (ID) x Ht. 130 mm (H)
Starter	DOL with reversible switch
Out-Put	50 kgs. to 200kgs./hour depending upon the product and reduction required in
Overall Dimension	885 x 970 x 1725 mm ht. (for AC drive arrangement ht. is 2000 mm)
Material Charging Height	1450 mm (approx.)
Material Discharging Height	800 mm (approx.)
