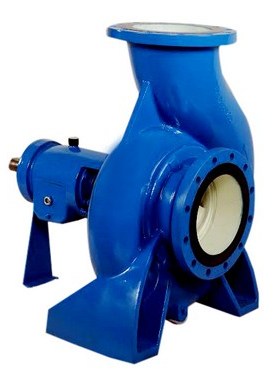

Paper Pulp Pump

Ps type pumps are used in paper & pulp industry,
food industry, sugar industry, effluent plants, sea
water desalination plants, power stations,
chemical & petrochemicals industry, power
stations and absorption plants in environmental
engineering & etc.,
handling of pulp & paper stocks up to 7%
consistency heavily contaminated liquids, raw
sewages, chlorinated water & etc
horizontal back pull out design pumps. Closed
and semi open impeller construction with taper
roller bearings on both ends designed in
accordance with flange standard of ansi b 16.5
bearings are oil lubricated and grease lubrication
is optional
salient features
back pull out design
- steady flow
- high efficiency
- sturdy construction
- low npsh
- noise & maintenance free
- environment friendly
- shaft deflection below 0.05mm
- simple external axial adjustment for impeller
wear & tear
- to pump the pulp as like water
material of construction
graded cast iron , 2% nici, wcb ,ca 15, ss 304
,ss 316,ss317l, cd4mcu, alloy 20,
operating range
capacity : up to 2500 mâ³hr
head : up to 80 mtrs (262 feet)
temperature : up to 140â°c (284â°f)
casing pressure : up to 22 kg cmâ²
pump size : dn 80 mm to dn 400 mm
speed : up to 1750 rpm
direction of
rotation : clock wise from drive end
no of models : 30 models.
