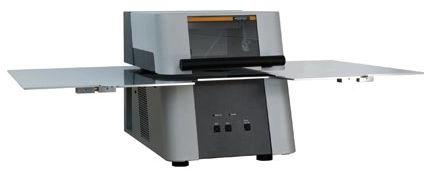

PCB Coating Thickness Measurement Gauge

PCB coating thickness measurement gauge - XULM PCB is engineered under the firm direction of experts. These are specific X-Ray fluorescence measuring instrument widely used for measurements and analyses of coating thicknesses and compositions on printed circuit boards. These are specific robust entry-level instrument, widely recommended by large numbers of clients.
Applications

• Measurements on small components and structures on printed circuit boards in sizes up to 610 x 610 mm (24 x 24 in)
• Measurements of functional coatings in the electronics and semiconductor industries
• Determining of the composition of electroplating baths

General Specification

• Intended use: Energy dispersive X-ray fluorescence measuring instrument (EDXRF) to determine thin coatings and alloys.
• Element range: Chlorine (17) to Uranium U (92) ‚¬ up to 24 elements simultaneously.
• Design: Bench-top unit with housing with a slot on the side Fixed sample support
• Measuring direction: Bottom up
