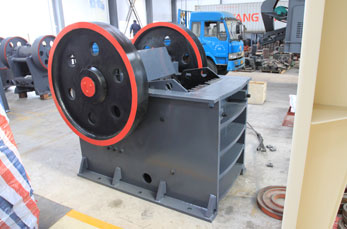

Contact SupplierPE series jaw crusher is usually used as primary crusher in quarry production lines, mineral ore crushing plants and powder making plants. It can be described as obbligato machine in mining, building construction, construction wastes crushing, Hydropower and Water Resource, railway and highway construction and some other industries.
Pretreatment: Using the hydraulic hammer to crush the big stone into smaller one, and arrange the worker to cut through the long reinforcement to prevent damaging the belt conveyor.
Model | Feed opening (mm) | Maximum feeding size (mm) | Range of discharge opening (mm) | Capacity (t/h) | Speed (r/min) | Power (kw) | Overall dimension (mm) |
PE500×750 | 500×750 | 425 | 50-100 | 45-100 | 275 | 55 | 1890×1916×1870 |
PE600×900 | 600×900 | 500 | 65-160 | 70-120 | 250 | 75 | 2520×1840×2303 |
PE750×1060 | 750×1060 | 630 | 80-140 | 130-260 | 250 | 90 | 2620×2302×3110 |
PE900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 130 | 3789×2826×3025 |
PE1000×1200 | 1000×1200 | 850 | 195-265 | 230-380 | 200 | 130 | 3889×2826×3025 |
PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 220 | 200 | 4930×3150×3700 |
