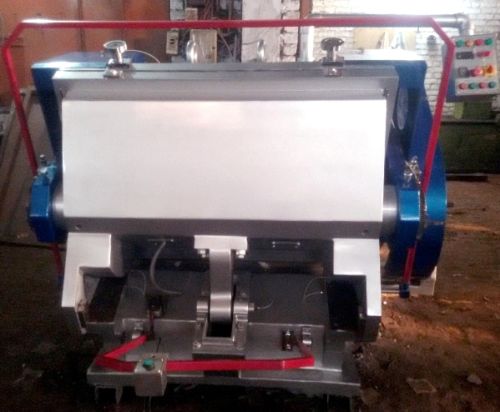

Ravi Platen Punching Machine

With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed
Die Punching Machine (size 40*56)

Applications:

Widely used for creasing and punching of cardboard cartons as well as corrugated boxes

Size -36"x50"
Platen Size -40"x56"
Impression Hour -960
H.P. Required -7.5 H.P
Floor Space App. -85"x80"
Weight Approx (Kgs) -6800

Heavy Duty Die Punching Machine With Electro Magnetic Clutch Brake and three Brake System with 2 No. Chassis and One MS Steel Plate With Pulley V-Belt and Electrical Siemens Panel Board with Timer Counter, A.B.B Motor, Rod 80mm, Brown Brush, E9-Steel Shaft, Steel Gear, Ball Bearing S.K.F, 4 D.P Teeth, Automatic Breaking Sensor, Automatic Lubricant and all standard accessories.
