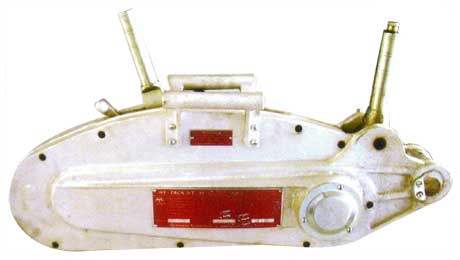

Plain Steel Pulling and Lifting Machine, For Industrial, Marine, Load Capacity : 3.2 Ton

₹ 21,000 - ₹ 23,000 / Set

MaterialSteel
Brand NameHYTACK
TechnicsMachine Made
UsageIndustrial, Marine
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Retailer
Year of Establishment 1956

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameHYTACK
MaterialSteel
UsageIndustrial, Marine
TechnicsMachine Made
PatternPlain
Twist TypeN a
Size20-25 Mm
LengthN a
Load Capacity3.2 ton
SpecialitiesGood Quality
Packaging TypeWooden box

We are recognized as one of the prominent Pulling and Lifting Machine Manufacturers & Importers in India. Various national as well as international clients are placing repeated orders for the Pulling and Lifting Machines as no better alternative is available for it in terms of quality and performance like we offer. Additionally, our Pulling and Lifting Machines are manufactured as per IS: 5604-1984 specifications for safety, quality and performance.
Exclusive Features

Constructed from the Cast Graded Aluminium Alloy Body and Pressed Steel (Galvanized) to facilitate heavy duty applications
Specially Designed Reels: Galvanized steel wire rope Mounted on specially designed reel to prevent early wear and tear of Wire Rope and hook.
Backward and forward lever placed in tandem providing a slim design and assuring power transfer along the center
Anchor bolt offers numerous and versatile connecting possibilities with load hook, sling ropes and chains.
Jaw grips drop forged from 20 MnCr2 steel, precision-machined and heat treated to prevent rope slip
Rope clamp system: Easily disengaged with a lever allowing smooth installation of wire rope
Smooth and easy operation with adjustable telescopic handle
Anchor hooks made of drop forged steel
Alloy Steel Forged and Zinc Plated as per IS: 1573
SuperFlex Plough Steel as per IS-2266 with Heavy coating as per IS-4826.

Technical Specifications

Model	HT-7 RDSO App.	HT-13 RDSO App.	HT-20 IS - 5604	HT-35 RDSO App	HT-58 IS - 5604
Dimensions (mm)	515 x 195 x 110	600 x 235 x 130	600 x 235 x150	700 x 400 x 140	810 x 465 x 190
Capacity : S. WL. Lifting Pulling	0.80 tonne 1.25 tonne	1.6 tonne 2.6 tonne	2.0 tonne 3.0 tonne	3.2 tonne 5.2 tonne	5.0 tonne 8.0 tonne
Velocity of wire rope	45.5mm / stroke	45.5 mm / stroke	50. 5 mm / stroke	25.5 mm / stroke	30. 5 mm / stroke
[Effort Lifting Capacity Pulling Capacity	25 kgfMax. 25 kgfMax.	35 kgf Max. 35 kgf Max.	35 kgfMax. 35 kgfMax.	45 kgfMax. 45 kgfMax.	50 kgf Max. 50 kgfMax.
lLength of Telescopic Operating Handle	530 / 780 mm	760 / 1170 mm	760 / 1170 mm	800 / 1210mm	800 / 121O mm
Factor of Safety	5 min	5 min	5 min	5 min	5 min
Diameter of rope	8.0 mm	11.0 mm	12.0 mm	16.0 mm	20.0 mm
Standard length of rope / fittings	1Om / D - Shackle	20 m / Hook	20m / Hook	10m / D-Shackle	10 m / D -Shackle
iBreaking load of wire rope	41.0 KN min	9.0 t min	9.6 t min.	161.0 KN min	196.0 KN min
lBack slippage of wire rope	10% of total lift / stroke	10% of total lift / stroke	10% of total lift / stroke	15% of total lift / stroke	15% of total lift / stroke
Weight (Approx)***	8.0 kgs Max	18.0 kgs Max	19.0 kgs Max	30.0 kgs Max	47.0 kgs Max
