Pulling Machine

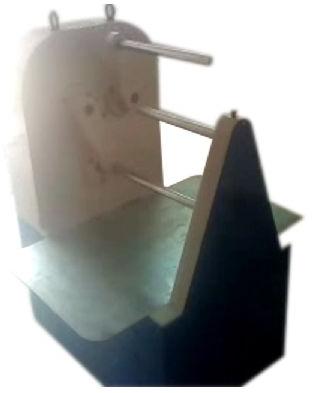

Pack-Make Engineer’s pulling machine is having robust construction which in turn increases the durability and reliability of machine. Pulling machine consists of three arms of which 2 are moving in opposite directions of each other while one is fixed. The movement of arms in specific directions stretch the batch . The rpm is low which is suitable for the batch and also for safety of workers. The batch coming from cooling plate is laid on the arms of pulling machine. The machine starts and does the work of pulling the batch. Manual mixing can also be done while keeping batch on the machine. The pulling machine is versatile in operation as it can move in forward direction as well as reverse directions. Pulling machine is highly recommended for confectionery processing industry due to its excellent reliability and safety.

 Smooth and easy in operation.
 Reverse and forward motion possible.
 Maintenance is negligible.
 Easily accessible arms so easy to remove for cleaning.

One Batch at a Time.

Drive : 2 H.P. A.C.
Supply : 440 V , 3 Phase Supply.

Length : 950 mm
Width : 1200 mm
Height : 1250 mm

300 Kg.
