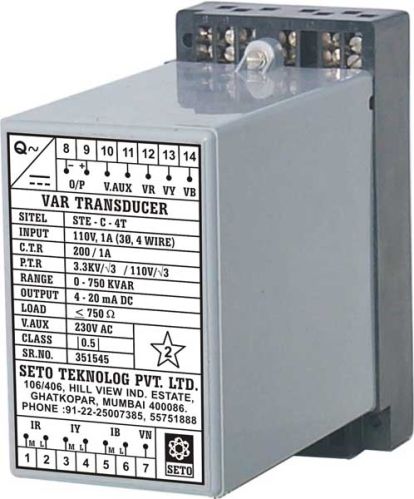

Reactive Power Transducer

We Offer Reactive Power Transducer.
This transducer is used for measurement of Reactive Power for single phase (STE-A-4T) system as well as for 3-phase, 3-wire (STE-B-4T) system and 3-phase 4-wire (STE-C-4T) systems with balance and unbalanced load. They are suitable for measurement of both import and export of power. The output is a load independent DC current or voltage which is proportional to input power. The output can be connected directly to indicating instruments or to data transmission system.
Feature
• Available in accuracy class index - 0.2, 1.0 & 0.5
• Withstands wide temperature variations.
• VA burden on CT/PT very low. -
• Low internal consumption
• Wide range of Input / Output to meet National / International requirements.
• Comply to revised IEC 60688 (1997-10) standards.
• Flexibility in auxiliary power supply requirements - A.C. / D.C.
• Rugged and vibration resistant.
• Withstands seismic test as per IEC 344-1974 for Nuclear Power applications.
• Available in dust proof sheet plastic enclosures suitable for Back panel / Din rail mounting.
• Multiple outputs also available - upto 4.
• High input / Output isolation - 4.0 KV.
