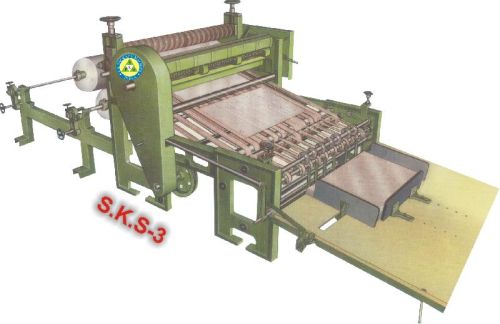

SK PACKAGE MACHINE Reel To Sheet Cutting Machine

We provide the clients reel to sheet cutting machine (sks 3) that is designed for high production and accurate cutting of sheets or 2ply corrugated board without damaging flutes and liner paper with the help of automatic jogging attachment.

specifications

model no. : sks - 3

bodythis strongly design machine can be used as an independent unit to a corrugation machine for direct and accurate sheet cutting by rubber roll.it reduces the percentage of wastage as a result to minimize with high production capacity.
Setting actionit is gear operated for adjusting of sheets to the required length from 5” to 118” according to size chart.set of gears consisting 22 nos.
Designthe machine is robust in design and in grade castingheavy metal ms pipe coated with natural rubber for rubber rollnylon sandwich belt shall be provided as a delivery conveyor to carry the sheets out.reel stand is provided to load the roll.pedestal made in china ucp 208 (nis etc).single phase, d/c electric motor 1440rpm / 440v isi marked, certified by iso 9001 – 2000.hammer tone finish (opal green, parrot green) in colour.control panel with digital counting attachment.all moving parts are protected by safety guards.jogging attachment is provided to collect the paper automatically
technical data
machine sizemotor (h.p)floor spacemachine heightgross weight (kg) approx.54"3.0100" x 85"60"1000-1250 kg64"3.0100" x 95"60"1200-1550 kg
