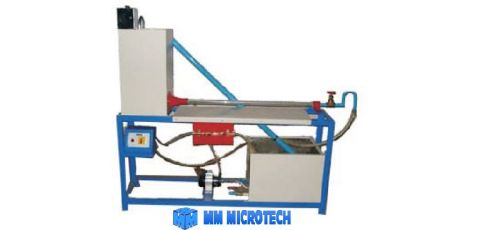

MM MICROTECH Reynolds Apparatus

We deal in high-quality Reynolds Apparatus, which is specially meant for deducing the Reynolds number and further the flow’s type – laminar or turbulent. We are reckoned among the leading Manufacturers and Suppliers of Reynolds Apparatus in Kolkata, West Bengal. The Apparatus is characterized by durability, user-friendly interface, hassle-free maintenance, space-spacing structure, rugged body, etc. And its quality is tested and ascertained on all the crucial parameters such as performance and life.

Features:

1. Choice of Test Section
2. Closed loop water circulation
3. Compact & stand alone set up
4. MS Excel sample calculation program on demand
5. Stainless Steel tanks and wetted parts
6. Superb Painted structure
7. Simple to operate & maintain

Specifications:

• Tube : Material Borosilicate Glass
• Dye vessel : Material Stainless Steel, Suitable Capacity
• Capillary Tube : Material Copper/Stainless Steel
• Constant Head Water Tank : Capacity 40 Ltrs MOC SS / MS with Powder Coated
• Flow Measurement : Using Measuring Cylinder./ Using Measuring Tank, Capacity 25 Ltrs. MOC SS / MS with Powder Coated
• Sump Tank : Capacity 60 Ltrs MOC SS / MS with Powder Coated
• Water Circulation : ½ HP Mono block Pump.
• Piping & Fittings : GI/PVC with necessary Valves.
• Stop Watch : Electronic
• Control Panel : ON/OFF Switch, Mains Indicator, etc.

Utilities Required:

• Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
• Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
• 5A,Three pin socket with switch for pump.
• Water supply Tap water connection ½. BSP
