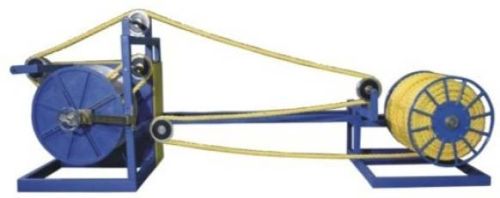

Rope Coiling Machine (MTP/CL-16)

We are reputed as one of the leading Rope Coiling Machine (MTP/CL-20) Manufacturers, Exporters and Suppliers from Gujarat, India. We offer high-precision MTP/CL-20 Rope Coiling Machine that is constructed using high-grade components and by employing latest technologies. It is robust in construction, highly reliable and requires low maintenance for a long run. Our Rope Coiling Machine is thoroughly tested on various parameters by our team of quality auditors. Furthermore, we can provide customized Rope Coiling Machine on request.

Specifications :

• MODEL : MTP/CL-16
• Rope Size : 16mm to 44mm
• Head Speed : 150 RPM max
• Coil Size Max : 200Kgs.
• 1000Mm Diameter x 700mm Traverse x 225mm ID
• Motor : 7.5 KW AC Motor
• Dimension(LxWxH) : 14'0" x 5'0" x 6'0"
• Weight : 1000 Kgs

 Key Features :

• Digital Length Counter Meter
• Easy To Operate
• Mechanical Brake System To Pay Off Bobbin
• AC Frequency Drive

Optional Features :

• Online Digital Printer
• Electrical Chain Hoist Arrangement

Note : We reserve the right to change details / specifications / equipment without any prior notice.
