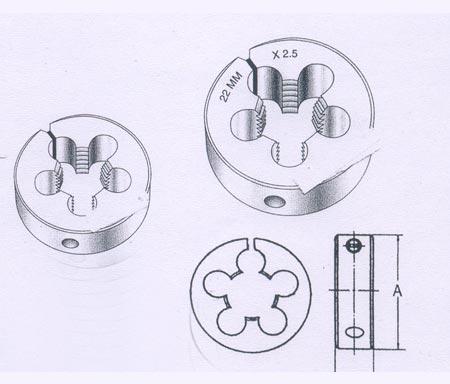

Polished Round Dies, Color : Grey, Certification : ISI Certified

Product Details

We are offering round dies.solid & splitmaterial : special tool steelhardness : 58 to 620 hrc.

Screw Guage No.	Screwing Size	Threads per Inch BSW	Threads per Inch BSF	Threads per Inch UNC	Threads per Inch UNF	Screwing Sizes	TOutside Diameter Inch
2X.4	1/16	60	-	-	-	-	13/16
2.5X45	3/32	48	-	-	-	-	13/16
3X.5	1/8	40	-	-	-	-	13/16
4X.7	5/32	32	-	-	-	-	13/16
5X.8	3/16	24	32	-	-	-	13/16
6X1.0	7/32	24	28	-	-	-	13/16
-	1/4	20	26	28	20	-	13/16-1-1.5/16
7X1.0	9/32	20	26	-	-	1I8X28	1-1.5/16
8X1.25	5/16	18	22	24	18	-	1-1.5/16
10X1.5	3/8	16	20	24	16	-	1-1.5/16-1.1/2
11 X1.5	7/16	14	18	20	14	-	1.5/16-1.1/2
12X1.75	1/2	12	16	20	13	-	1.5/16-1.1/2-2
14X2.0	9/16	12	16	18	12	1I4X19	1.,112-2-2.1/4
16X2.0	5/8	11	14	18	11	3/8X19	1.1/2-2-2.1/4
-	11/16	11	14	18	-	-	1.1/2-2-2.1/4
18X2.5	3/4	10	12	16	10	-	1.1/2-2-2.1/4
20X2.5	13/16	10	12	46	-	1/2X14	2-2.1/4
22X2.5	7/8	9	11	14	9	5/8X14	2-2.1/4
24X3.0	1	8	10	12	8	3/4X14	2-2.1/4-3
27X3.0	1.1/8	7	9	12	7	1X11	2.1/4-3
30X3.5	1.1/4	7	9	12	7	1.1/4X11	3-4
33X3.5	1.3/8	6	8	12	6	1.1/2X11	3-4
36X4.0	1.1/2	6	8	12	6	-	3-4
39X4.0	1.5/8	5	8	-	-	-	3-4
42X4.5	1.3/4	5	7	-	5	2X11	4
45X4.5	1.7/8	4.1/2	7	-	-	-	4
50X5.0	2	4.1/2	7	-	4.1/2	-	4
