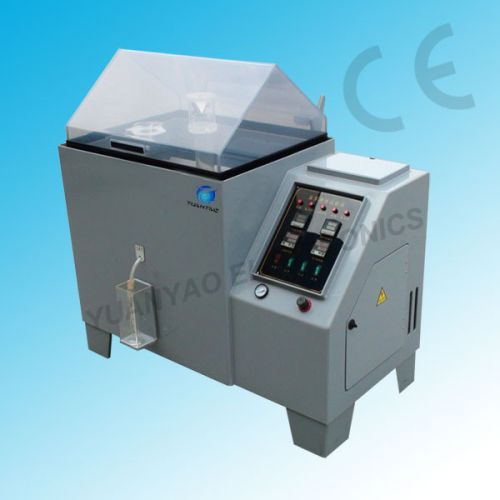

Salt Corrosion Test Machine, Brand Name : Yuanyao

We are offering salt corrosion test machine. Brief description of salt corrosion test machine:

this machine has a standardized test method to check corrosion resistence of coated samples. Salt spray test
is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its
suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a
period of time.test duration depends on the corrosion resistance of the coating; the more corrosion resistant
the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have
different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.

main features of salt corrosion test machine:

1. Detecing transparent cover is made of imported pp & pvc, which endures acid and high temperature.

2. The patented nozzle and spray unit make an uniform spray rate.

3. The defogging equipment can automatically defog, which gives us a clear view of the test samples.

technical specifications of salt corrosion test machine:

model no:ysst-108
inner chamber size(w*h*d) 600*400*450
exterior chamber size(w*h*d) 1250*1050*910 temp range inside chamber room temp.~50°c,±0.5°c
air room temp.~63°c,±0.5°c
salt water room temp.~50°c,±0.5°c
saturated air pressure(kgm) 0.8~2.0
spray volume(m80cmhr) 0.5~3.0
ph salt 6.5~7.2
copper acetate 3.0~3.2
exter.inner.material p.v.c & p.p
systems salt spray veicle air+acid(base)liquid
heating sus#304 & #316 stainless steel heater+taflon
controller hydrometer,salinomerer,fog collector,glassbar
other components digital electronic control+s.s.r
safety devices overheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator light
power supply ac 1 phase 220v±10% 5060 hz
