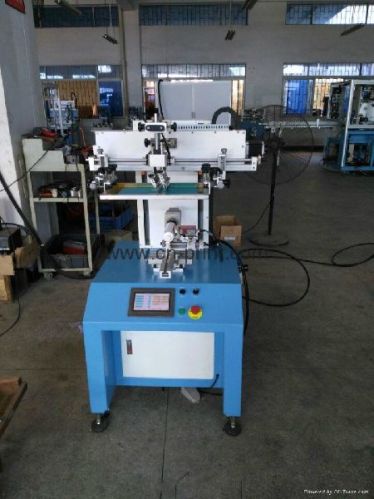

Semi-Automatic Semi Automatic Screen Printing Machine

₹ 6.83 Lakh / Set

Automatic GradeSemi-Automatic
ConditionNew
Country of Origin380V/ 50HZ
Brand NameLC
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of Origin380V/ 50HZ
ConditionNew
Automatic GradeSemi-Automatic
(flat) Max printing area320*220mm
After-sales Service ProvidedEngineers Available To Service Overseas
Cubic Meter:1.2
Product appearanceRound /oblate /flat
(Round)Max. Printing diameterÎ¦120mm
Plate TypeScreen Printing Plate
Gross Power50W
Brand NameLC
(oblate)Max printing diameter500mm
(Round)Max printing arc length370mm
Machine Weight260kg
Printing Speed2000 PC/H
Air pressure0.5Mpa

Servo system LC-PA-400ES

Advantages :

Round printing function (taper section)
Automaticoil scrabbing, oil return and lifting table
Adujustability of routs and speeds
Self-poise scraper to balance printing pressure
Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
High precision and easy & quick adjustability

Testing Please provide :

110V or 220V power supply.
5-7 bar compress air.
Esposal screen plate 1 pcs.
A jig 1pcs.
5-10 pcs product samples.

Parameter

roduct name	LC-PA-400ES Cylinder screen printers add servo system for color registration
Model No	LC-PA-400ES
Certificate	CE, ISO-9001-2000
Brand Name	LC,China
Description	LC-PA-400ES screen printer add servo system for color registration. It adopted Japan Fuji servo, Germany color sensor and Japan Hitachi PLC system,meet CE CERTIFICATION. The machine should be PLC contorl, left and right by servo system, the frame move by electric, roating by servo system, do not need gear,with color sensor too. Suitable for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc...Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc... Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3^colors
Advantage	1. Fully automatic control by microcomputer & easy handling 2. Four figures automatic counter 3. Round printing function (taper section) 4. Automaticoil scrabbing, oil return and lifting table 5. Adujustability of routs and speeds 6. Self-poise scraper to balance printing pressure 7. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides) 8. High precision and easy & quick adjustability Application area detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick tube
Parameter	1. Model number: LC-PA-400ES 2. Product appearance: Round /oblate 3. (Round)Max. Printing diameter: Φ120mm 4. (Round)Max printing arc length: L: 370mm 5: (oblate)Max printing diameter: 500mm 6.Voltage power: 220V/ 60HZ or 110V/50HZ 7. Printing Speed: 1200 PC/H 8. Machine/ Weight: 145kg 6. Air pressure: 0.5Mpa
Usage	1,useful printing on PVC ,paper,package bag,silicone,key,press,electronic,procducts.compute keypress. 2,suitable for print palneing of products. Such as: plastic, glass, ceramics, wood, metal and other materials. 3,Widely applied to electronic appliances, computer keys, a remote control button, silicone power switch printing,backlight plate printing, advertising, packaging printing, sports products, toys, stationery gifts and other industries.
Free fittings	1 Set/Sets
Shipping way	By sea, by air, by express
Delivery time	Within 5 days from the receipt of payment
Loading seaport	Shenzhen or Hong Kong, China
package	Plywood case
Price term	FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment term	100% T/T in advance(negotiation)
