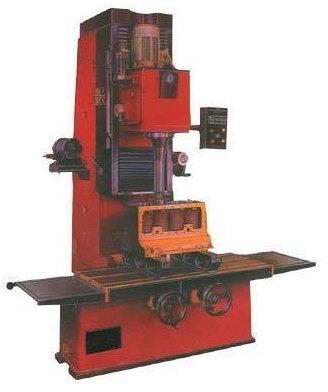

PMT Model: 600 Heavy Duty Boring Machine
Features for Model: 600
- Suitable for Automotive Engine Rebuilding
- Boring head travels on Ground Guide Ways protected with bellows
- Boring Head fitted with hardened alloy gears to give smooth feel and slide on columns
- Mechanical Machine with 2 Speed Motor and Six Speed Gear Box
- Optional: Machine with A/C Drive instead of Mechanical Machine
Standard Accessories: Spindle BS-65 (Boring Capacity Diameter 65 - 135 mm), Boring Tool Setting Device complete with micrometer, Two tool holders for boring, Portable Grinder with suitable Grinding / Lapping wheels, Two sets of parallel blocks of sizes 200 x 600 mm and 120 x 600 mm, Service spanners
Optional Accessories: Spindle BS-46 (Boring Capacity Diameter 46 - 70 mm), Spindle BS-130 (Boring Capacity Diameter 130 - 230 mm), ‘V’ Block Stand for ‘V’ Type Engines
| Model: | 600 |
|---|---|
| Boring Capacity: | 32 - 250 mm |
| Max. Boring Depth: | 500 mm |
| Max. Spindle Travel: | 600 mm |
| C.I. to Column Ways: | 450 mm |
| Useful Table Surface: | 1250 x 420 mm |
| Max. Table Cross Traverse: | 50 mm |
| Max. Table Traverse: | 1400 mm |
| Spindle Rotations: | 100-150-200-300-400-600 rpm |
| Spindle Head Feed / Rev.: | 0.02, 0.04, 0.06 mm/rev |
| Rapid Up and Down: | 750 mm |
| Spindle Motor: | 2 HP (Dual Speed) |
| Rapid Up and Down Motor: | 1 HP |
| Net / Gross Weight: | 1800 / 2500 kg |
| Overall Dimensions: | 1.6 x 1.6 x 2.2 & 1.7 x 1.6 x 0.8 m |
| Shipping Volume: | 7.80 m3 |
