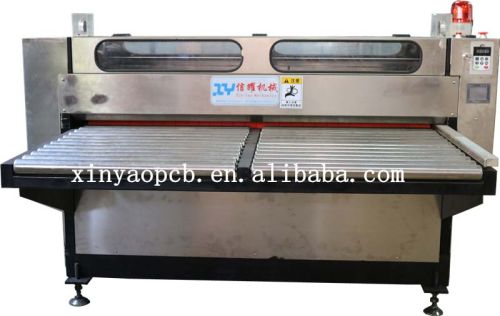

Sheet Cutting Machine, Brand Name : Xinyao Machinery

By utilizing modern machines and latest equipment, we are engaged in manufacturing, supplying and exporting an exclusive range of PCB Rolling Shear. The machine can used two kinds of knives : plate blade and angled blade. You can choose one according of the type and thickness of plate. Meanwhile, for the transport platform, we have plate type and roller type, which is customized. Four or five pair of blades can guarantee the PCB board without deformation and damage after cutting. Offered machine is manufactured under the guidance of our professionals, using supreme quality components and innovative technology as per the defined industry standards. If you have interest on our product, please feel freely consult us.
Attached : a piece of board receive station
A wrench of adjusting blade
A set of hexagon wrench
Features�
.Rigidity in structure
.cost effective price
.long service life and high working efficiency
.Consume less power, generate low noise and easy to operate
Technical parameter
Machine size L*W*H 1950x1315x1135mm
Working height 750mm
Net weight 1.5T
Work power supply 3ph 380V
Power 4KW
Thickness of plate 0.3-2.5mm
Min length of plate 150mm-1500mm
Blade specification D200*d140*t20
Blade thickness 20mm
Rotation speed 24rmin
Transport platform Roller type Plate type
Working speed 15Mmin
