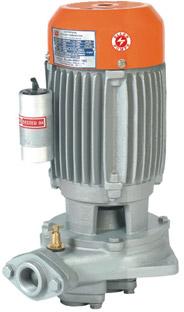

Single Phase Jet Pump

Listing ID #3944259

Get Latest Price

DischargeUpto 700 LPM
Head RangeUpto 77m
Boresize75 / 100mm and above
Outlet Size25, 32mm
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Boresize 75 / 100mm and above
Discharge Upto 700 LPM
Supply 230 V / 50 Hz AC
Range 0.5 HP - 2 HP
Outlet Size 25, 32mm
Head Range Upto 77m

Ellen Jet Pump is as combination of Centrifugal Monobloc pump and Jet pumps assemble specially designed to lift water from the underground resources. Easy to install requires less maintenance and florr area. These Pumps are manufactured as per Indian Standard IS: 14220 & IS:9283 with strict quality control to ensure efficient & reliable operation.

MOTOR

PUMP

Totally enclosed,Squirrel Cage Induction motor.(TEFC)
Motors are designed to operate under wide voltage, 160-240 in 1 Phase
The lamations are non-oriented silicon steel and confirms IS-648
Aluminium pressure Die-cated rotors and are dynamically balanced.
Windings vacuum impregnated with synthetic varnish for better moister resistance.
Grease lubricated anti-friction ball bearings specially designed to withstand radil and axial loads.
High quality insulation materials used to withstand high temperatures.
High grade super enamel wire used for winding.
Designed with Capacitor start and run for high starting torque.
Designed for easy rewinding

Monoset construction
Components made of closed grained cast iron of high tensile strength and has very smooth surface finish resulting in low friction loss.
Mechanical shaft seal for longer life and effective sealing against water leakage.
Designed for optimum efficiency and are energy efficient.
