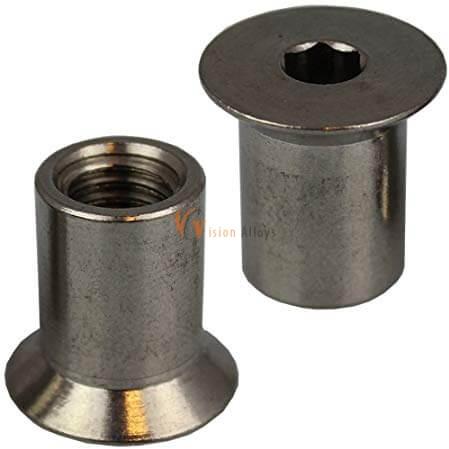

Sleeve Nuts, Size : M3 - M56, 3/6" To 2", Custom Sizes

Product Details

ThreadDiameterD	WidthAcross FlatsF	WidthAcross PointsC	OverallLengthL	WeightEach(lbs)
1/2	7/8	1	4	0.53
5/8	1-1/8	1-5/16	5	1.12
3/4	1-1/4	1-7/16	5	1.29
7/8	1-1/2	1-3/4	7	2.67
1	1-5/8	1-7/8	7	2.97
1-1/8	1-7/8	2-3/16	7-1/2	4.35
1-1/4	2	2-5/16	7-1/2	4.75
1-3/8	2-1/4	2-5/8	8	6.56
1-1/2	2-3/8	2-3/4	8	7.06
1-5/8	2-5/8	3-1/16	8-1/2	9.37
1-3/4	2-3/4	3-3/16	8-1/2	9.97
1-7/8	3	3-7/16	9	12.82
2	3-1/4	3-5/8	9	13.5
2-1/4	3-1/2	4-1/16	9-1/2	17.8
2-1/2	3-7/8	4-1/2	10	22.9
2-3/4	4-1/4	4-15/16	10-1/2	28.8
3	4-5/8	5-5/16	11	35.7
3-1/4	5	5-3/4	11-1/2	43.5
3-1/2	5-3/8	6-3/16	12	52.3
3-3/4	5-3/4	6-5/8	12-1/2	62.2
4	6-1/8	7-1/16	13	73
4-1/2	6-7/8	7-15/16	14	99
5	7-5/8	8-13/16	15	130

SLEEVE NUTS SPECIFICATION

Material	Standards	Grades
Nickel Alloy Hex Nuts	ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472	UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel Hex Nuts	ASTM / ASME A/SA 193 / 194	B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel Hex Nuts	ASTM / ASME A/SA 193 / 194 GR	B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel Hex Nuts	UNS NO. S 31803, S 32205	Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials:	Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys	Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys	Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys:	1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks:	Carpenter, Armco, INCO, Cabot, DuPont.
Finish:	Black Oxide, Zinc Plating, Hot Dip Galvanized
