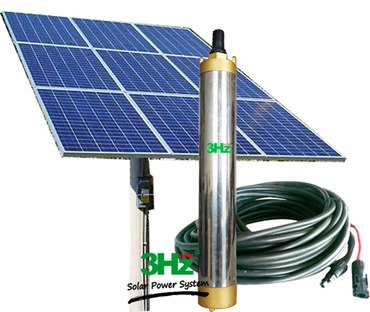

Solar Water Pump

We are offering solar water pump(m80 series).
water
flow size of
intake size of
outlet protection class rotation speed
45l/min 76mm 32mm ip68 18000/rpm
model lift
(m) power
(w) dimension
(mm) solar panel length of wire (m) quantity of solar panel estimated weight for pump (kg)
m2480-10 10 120 530*76 160w/24v 2 80w*2pcs 2
m2480-20 20 264 600*76 360w/24v 5 180w*2pcs 3.5
m2480-30 30 408 700*76 560w/24v 5 140w*4pcs 4.5
m2480-40 40 504 800*76 680w/24v 5 170w*4pcs 6
m2480-50 50 624 1050*76 880w/24v 5 200w*4pcs 7
m2480-60 60 768 1150*76 1000w/24v 5 125w*8pcs 8.5
m2480-70 70 888 1250*76 1200w/24v 5 200w*6pcs 9.5
m2480-80 80 984 1350*76 1500w/24 5 150w*10pcs 10.5
m2480-90 90 1152 1450*76 1800w/24v 5 180w*10pcs 11.5
m2480-100 100 1272 1550*76 2000w/24v 5 200w*10pcs 12.5
system benefits system protection:
to solve the problems of the shortage of water and electricity area
easy installation, intelligent operation (just connected dc power supply can work normally) lower cost, lower maintenance cost (with three phase brushless design free maintenance)
environmental and friendly, no carbon dioxide
built-in mppt solar tracking, effective to use of energy (increase 45% efficiency)
dc input voltage range (22 ~ 45 v)
ce certification 1.overvoltage protection
2.low-voltage protection
3.over current protection
4.overload protection
5.shortage of water protection
note：
1. If only need to work in the day, it just need the solar panel and connected with the pump. Do not need controller and battery. Please refer to the above information, the open circuit voltage of the solar panel is about 36 v, the water flow will changed according to the sunshine.
2. If the pump is needed to work at night, its need to connect solar controller and batteries and other related accessories. That is the off-grid solar water pump system.
