Solid-Liquid Extraction Unit

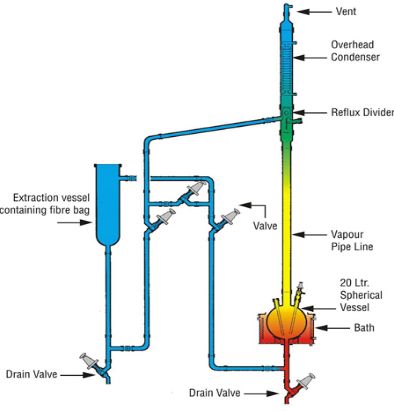

This is a semi-batch unit designed for solid-liquid extraction as a means of separation. The solid to be extracted is put inside a glass fiber bag and is placed in the extraction vessel. Solvent in the reactor is boiled and condensed, and passed to the extraction vessel, from where extract is mixed with the solvent and passes to the reboiler. The process is repeated until extraction is complete. Solution is again evaporated to obtain the extract. The unit is complete with spherical vessel, heating bath, condenser, reflux divider, extraction vessel, and necessary pipelines and valves. The unit can be supplied with solvent feed arrangement either from the top /or from the bottom, or with both arrangements. The unit is available in vessel size of 10, 20, 50, 100 Ltr.
