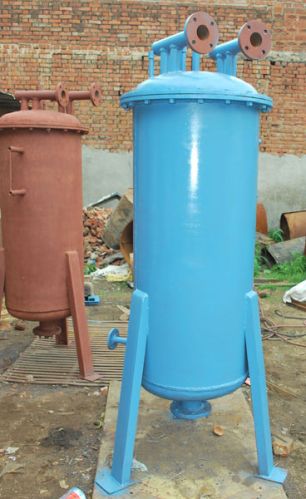

Contact SupplierSteam Generator is used for formation of steam without any firing furnace. We manufacture, export and supply Steam Generator that is safe in use with no water risk. Steam Generator runs with Thermal Fluid heater and steam pressure controlled by Automatic pneumatic valve operated. Steam Generator is fabricated by 10-12 mm mild steel plates and Boiler tubes. Coil of Steam Generator wound by machine to insure continuous flow of thermic fluid. Steam Generator is insulated with mineral wool and aluminum sheet. Steam Generator is fitted with all safety equipment as relief valve, pressure switch and pressure gauge. Features
Capacity | 200 kg/hr | 300 kg /hr | 400 kg/hr | 500 kg /hr |
---|---|---|---|---|
Working Pressure | Working Pressure 6.0 kg /sq cm | 8.0 kg/sq cm | 10 kg/ sq cm | 10 kg/sq cm |
Eletrical load | 1.0 hp/.75 kw | 1.0 hp / .75 kw | 2.0 hp/ 1.5 kw | 2.0hp/1.5 kw |
Steam space | 50 ltr | 65 ltr | 85 ltr | 100 ltr |
Water space | 350 ltr | 425 ltr | 550 ltr | 750 ltr |
Total Dry weight | 650 kg | 750 kg | 1000 kg | 1250 kg |
