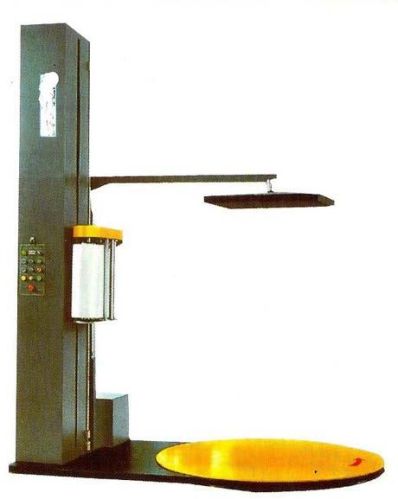

Stretch Wrapping Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Our Stretch Wrapping Machine is basically meant for pallets and can efficiently wrap pallets within size range of (500-1200) x (500-1200) mm. The machine features pneumatic direct transmission of the top plate device. It has a PLC based control system, which gives user a edge in handling wrapping operations with sheer ease.

View More Details

Send Enquiry

Details

Model	Pallet stretch wrapping machine
Model	Spsw 2100
Max. Wrapping Size (LxWxH) (max) (mm)	(500-1200) x (500-1200)
Wrapping Efficiency (loads/hour)	20-40
Turntable speed (rpm/min)	03/12/14
Turntable diameter (mm)	É¸ : 1650 / H : 85
Turntable Loading (max) (kg)	2000
Elecctrical requirement (v/hz)	220/50
Power (kw)	Turntable : 0.75 film
Power (kw)	Carriage : 0.4; Steel tower : 0.37
Film carriage	Pre-stretch type
Control system	PLC
Top plate device	Pneumatic direct transmit
Top plate device	Orbit top plate
Weight (kg)	800 kg
Machine dimension (mm)	L Type : 2745 x 1650 x 2700 / H type : 2745x1650x3300
