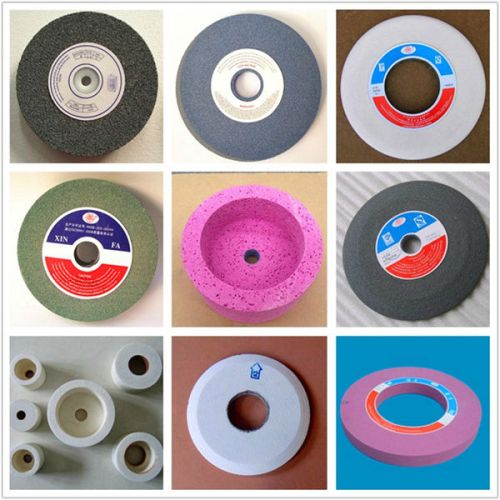

SURFACE GRINDING WHEELS AND SEGMENTS

Crystal abrasive surface grinding wheels and segments are primarily used to produce flat surface in all tool rooms and production shops in the machine tool, air craft, automotive, cutlery, mold & die and hand tool industries.
Wheels on horizontal spindle grinders
crystal abrasive provides the wide variety of wheels shaped in type 1, 5, 7, in horizontal spindle type surface grinding machines.
Type 1 straight wheels or type 5, 7 recessed wheels in diameters ranging from 6"(150mm) to 36"(915mm) and in thickness from 18"(3mm) to 4"(100mm) are normally used on horizontal spindle reciprocating table and rotary table grinders.
■specification guide
specification
material to be ground d.6"-10"(150-255mm d.12"-16"(305-405mm) d.18"-24"(455-610mm)
steel
unhardened (soft) 19a46k 19a46j 19a36j
hardened wa46j wa46i wa36i
tool & high speed sa60j sa54i sa46h
nitrided wa46i wa36h wa36g
die steel
hardened sa60i sa54h sa46h
annealed wa46j wa46i wa46i
stainless steel
heat treated sa60isa60i fa60isa54i fa46isa46h
cast iron
ductile sa46h sa54j sa46i
gray 23a46j 23a36i 23a36i
chilled c46k c36j c36i
stellite 23a0j5 23a46i 23a46h
chrome plating sa80j sa80i sa60h
tungsten carbide
roughing gc60i gc46h gc46h
finishing gc120i gc120h gc120h
bronze, brass c54j c54j c46i


industrial use
• auto oems
• auto ancillaries
• tools and dies
• cutting tool

standard sizes
100, 150, 180, 200, 250,300,350,400,450,500,550,600 mm

segments


segments are generally used on rotary table surface grinding machines and crystal abrasive provides wide range of all purpose shapes, sizes and specifications of segments which are composed with selected abrasives in grits, grades, structures and best bonding systems to match any material removal or finish requirement from precision tool grinding room to rugged production job.
