Brief introduction:

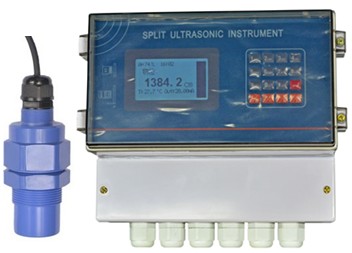

Integrating instrument is a universal industry intelligent instrument. Combine with our ultrasonic level meter, it become to differential level control system. Processing open channel flow integrating instrument function, it can be used as open channel flow meter.
Application:
Right-angle rectangular weir,
Triangular weir,
Width weir,
Parshall flume
Features:
Low sensor power consumption, easy installation and orientation, application wildly ,standard 4-20mA output, use it separately as liquid level meter
Easy operation, widely used in thin plate right-angle weir, triangular weir, parshall flume and so on. When power off, it can save 10 years.
Base on user's demand, it can attach flash disk, micro printer and storage battery. High precise, noncontact level measurement, without impact on flow velocity
Specification:
Display resolution: based on input signal
Calibration: factory calibration or on-site calibration
Display: LCD
Button: 4 figure sensitive key
Voltage output: DC12V or 24V
Signal output :RS485RS232, 4~20mA,
Work voltage: AC160V~250V
Normal power consumption : <5W
Work temperature: 0~50℃
Humidity: ≤85RH Pressure: normal
