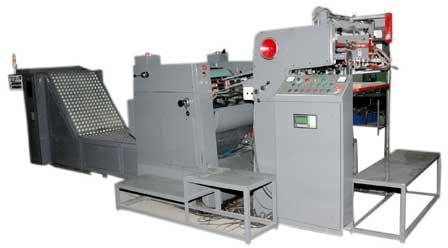

UV Coating Machine

We are listed at the apex among the UV Coating Machinery Exporters from Faridabad. The UV Coating Machines, offered by us, have unique feeding system that is automatic and prevent coating when double sheets are forwarded. The Automatic UV Coating Machine is designed to meet the coating requirements on paper & board of different width. High gloss/ mat U.V., water base, solvent base varnish and heat seal lacquer could be used for the coating as per the requirements. The Automatic UV Coating Machines are also suitable for both flexo plate and rubber blanket as coating media. Single machine for coating full and spot U.V. Varnish on paper & Board. Maximum Speed of the machine is 8000 Sheets/ P/H with accurate registration on spot jobs and high gloss on fully jobs. The speed of the machine is controlled with AC Drive. Salient Features

• Automatic Delivery: According to different paper-weight, paper down speed can be designed variously, uses the lowest energy to keep the best effect.
• Smooth Delivery: Tunnel-type air suction has been adopted in the whole machine, so that the paper will go smoothly and delivered orderly.
• U.V. Coating: Varnish is controlled by frequency-converting speed regulation
• Reflectors: Imported elliptical Aluminum Reflectors with heat sink extrusion and fitted with replaceable imported mirror finished anodized aluminum sheet with pneumatic shutter Mechanism. All pneumatics system is from SMC. Compressed air is to be given to the Module
• UV Curing: U.V. Module with pneumatic Shutter Mechanism (2 Lamp & 2 Transformer and Control Gears)
• UV Lamp: One Linear tubular medium pressure Ultra Violet Quarts Lamps 8 KW (200 W/I) from UK
• IR Drying: for IR Drying and hot air
