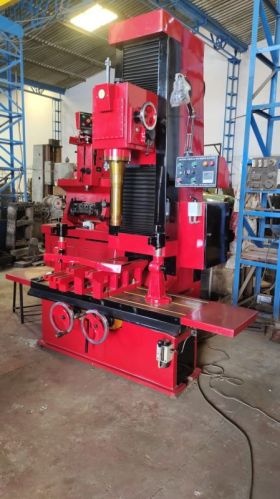

Semi Automatic Vertical Fine Boring Machine

Automatic GradeSemi Automatic
Brand NameELITE Machine
Rated Power1-3kw
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Technical Specification

TECHNICAL SPECIFICATIONS	2500	2200	1500V	1500V	1200V	1200V
Boring capacity	62 – 265 mm	62 – 265 mm	48 – 220 mm	48 – 220 mm	62 – 135 mm	62 – 135 mm
Boring capacity with extra spindle		38 -350 mm	38 – 310 mm	38 – 310 mm	38 – 190 mm	38 – 190 mm
Milling length	2300 mm	1800 mm	1350 mm		1250 mm
Milling width	400 mm	400 mm	350 mm		350 mm
Maximum boring head travel	850 mm	850 mm	700 mm	700 mm	600 mm	600 mm
Maximum distance head to table	1500 mm	1500 mm	1340 mm	1340 mm	1300mm	1300mm
Maximum distance between outer cylinder center	2500 mm	1800 mm	1200 mm	1200 mm	900 mm	900 mm
Max work piece on table		2500 kg	1000 kg	1000 kg	750 kg	750 kg
Spindle speed motor	2.2 kw/3 hp	2.2 kw / 3 hp	1.5 kw / 2 hp	1.5 kw / 2 hp	1.5kw / 2hp	1.5kw / 2hp
Motor rapid & feed		4kw servo motor	0.37 kw / 0.5 hp	0.37 kw / 0.5 hp	0.37 kw / 0.5hp	0.37 kw / 0.5hp
Motor table traverse longitudinal		0.37 kw / 0.5hp	0.37 kw / 0.5 hp		0.37 kw / 0.5hp
Spindle speeds	50 to 750 rpm	50 to 750 rpm	50 to 750 rpm	50 to 750 rpm	50 to 750 rpm	50 to 750 rpm
Spindle feeds		10 to 100 mm/min	12 – 100 mm / min	12 – 100 mm / min	12 – 100mm / min	12 – 100mm / min
Maximum distance from spindle centre to column	500 mm	500 mm	410 mm	410 mm	360 mm (14.17″)	360 mm
Working table size (l x w)	2500 mm x 600 mm	2200 mm x 600 mm	1500 x 450 mm	1500 x 450 mm	1200 x 360mm	1200 x 360mm
Table traverse – longitudinal	2700 mm	2050 mm	1850 mm	1350 mm	1300mm	850 mm
Table traverse – cross wise	150 mm	150 mm	120 mm	120 mm	75 mm	75 mm
Length of the machine	3300 mm	3300 mm	2800 mm	2500 mm	2200mm	1900 mm
Width of the machine	1800 mm	1800 mm	1440 mm	1420 mm	1300 mm	1300 mm
Height of the machine	3050 mm	3050 mm	2525 mm	2525 mm	2440 mm	2440 mm
Work space required ( l x w)	4500 x 1850 mm	4400 x 1850 mm	4050 x 1520 mm	4050 x 1520 mm	2880 x 1400 mm	2800 x 1700 mm
Net weight	5000 kgs	4800 kgs	3500 kgs	3000 kgs	2650 kgs	2500 kgs
Gross weight	60000 kgs	5800 kgs	4000 kgs	3500 kgs	3300 kgs	3200 kgs
Shipping volume	15 m3	15 m3	9.5 m3	9 m3	9 m3	7 m3
