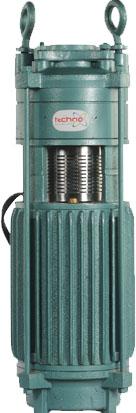

Vertical Openwell Pump

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product features Easy to install Enhanced efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft. The multistage vertical open well submersible....

View More Details

Send Enquiry

Company Information

Techno Industries Limited

S G Highway, Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Product features

Easy to install
Enhanced efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft.
The multistage vertical open well submersible monoblock can be placed at the bottom of the well. This arrangement does not require suction pipe.
Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
Water can also be drawn from a borewell which is bored at the bottom of the openwell by inserting a suction pipe into the borewell and providing a cooling tank arrangement to keep the monoblock submerged in water.

Applications

Irrigation
Drinking water supply
Industrial water supply
Cooling water circulating systems

Technical Data

Power (H.P.)	Single Phase	0.5 HP - 3.0 HP
	Three Phase	3.0 HP - 3 0 HP
Versions	Single Phase	240 volts +6% -15% 50 Hz DUTY S1
	Three Phase	415 volts +6% -15% 50 Hz DUTY S1
Speed ( N )	2880 RPM
Discharge Range ( LPM )	Single Phase	20 LPM - 650 LPM
	Three Phase	300 LPM - 2500 LPM
Head Range ( Mtrs )	Single Phase	5 - 35 Mtrs
	Three Phase	20 - 70 Mtrs
