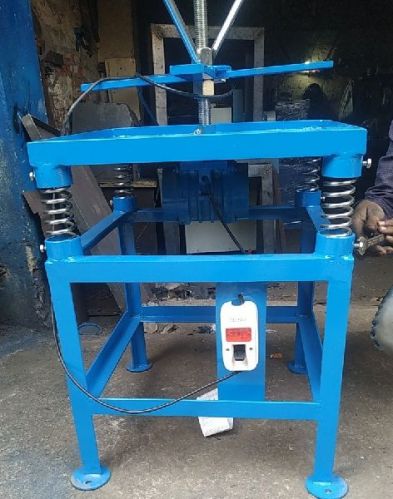

Electric VIBRATING TABLE(1METER) For CONCRETE TESTING

Moving on unfathomable volumes of industrial expertise, we are engaged in providing Vibrating Table which is stringently tested for high quality.
Specifications: It is designed to carry a load of 50 to 70 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 600*600mm. and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied between a maximum of 3600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. A switch is provided for starting the motor, suitable for operation on 220-230 volts, 1 phase, 50 cycles, A.C.supply.
SIZE AVAILABE 20*20"
24*24"
1*1 MTR
